Three Phase Adjustable Over And Under Voltage Protector 3
Selamat datang di SUPPLY IN,
SUPPLY IN merupakan jasa penyedia barang dengan kategori Tools dan Industri yang berkualitas langsung dari pabrik serta bisa CUSTOM sesuai dengan kebutuhan Anda.
– Item tersedia langsung dari pabrik
– Buka 24 jam cepat merespon
– Hubungi Kami Untuk Menanyakan varian Barang yang tersedia
– Pengiriman cepat 8-15 hari
Barang Tools & Industri dengan berbagai macam Jenis, Bentuk maupun berbagai variasi (silakan bertanya untuk mendapat kebutuhan Anda)
Note Penting: Kami juga bisa menyediakan segala jenis produk, silakan memilih fitur Online Quotation untuk penawaran menarik dari kami.
Selamat Bertransaksi!
Model Number : Topvd3
Type : Voltage Protector
Brand Name : Tomzn
Origin : Mainland
Certification : Ce

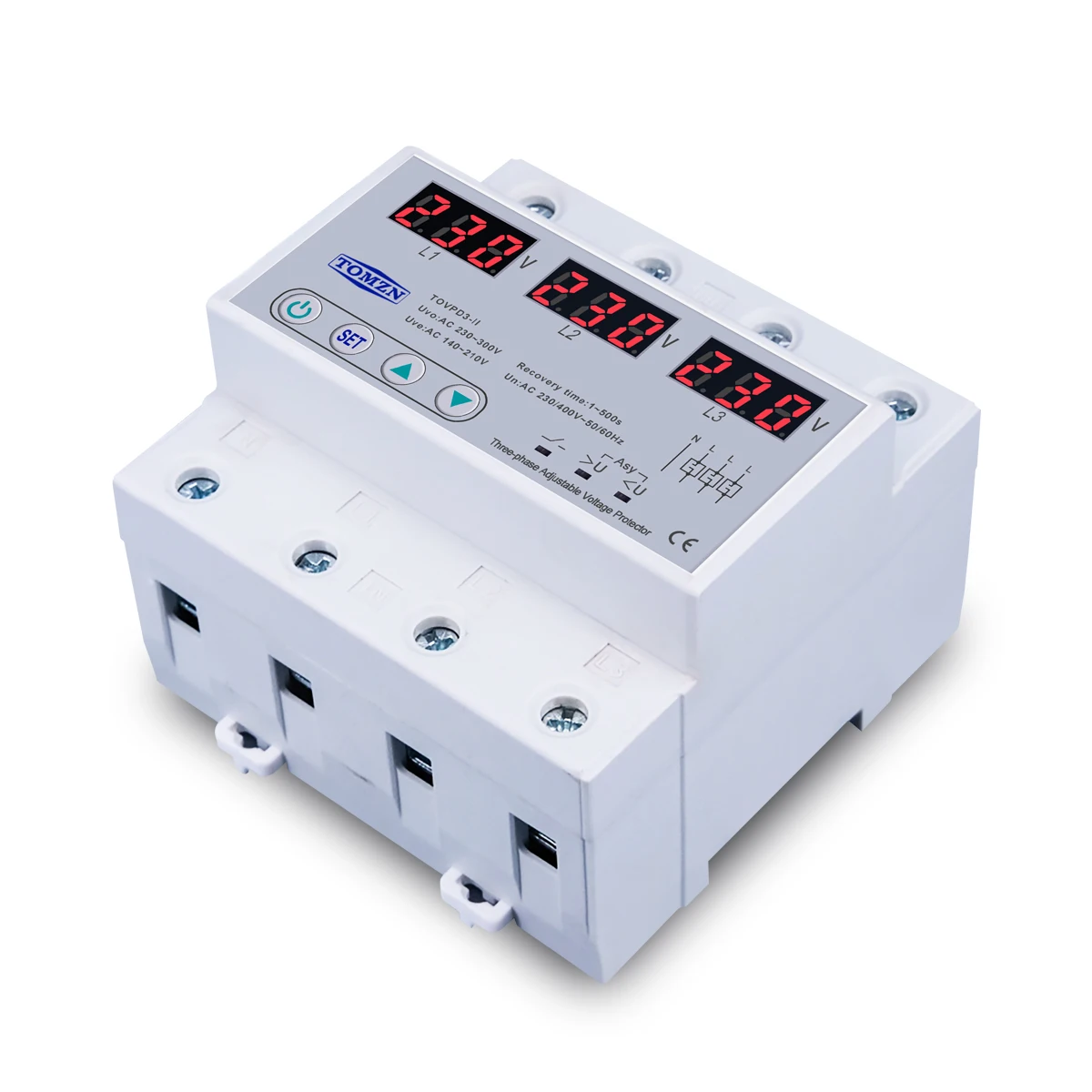

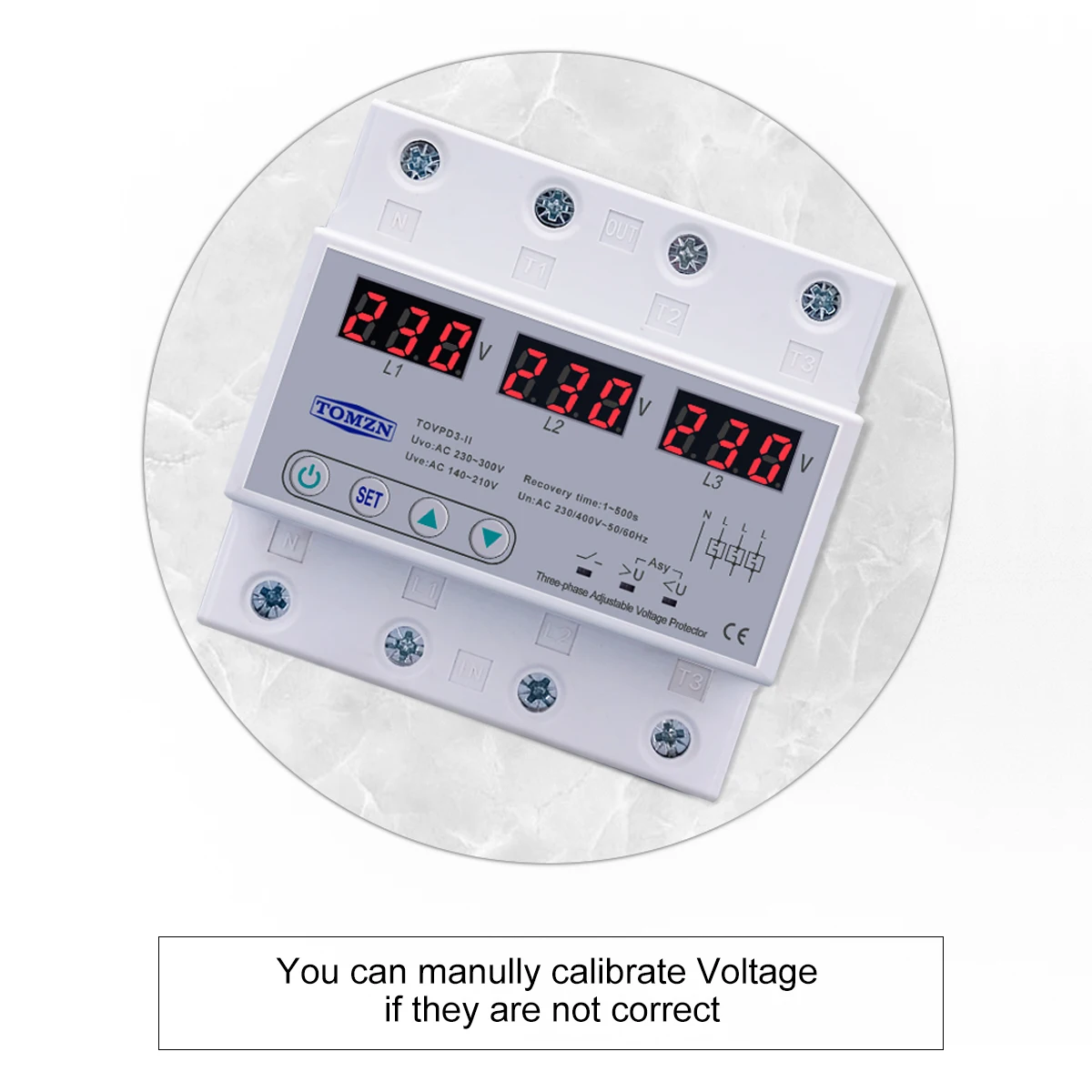

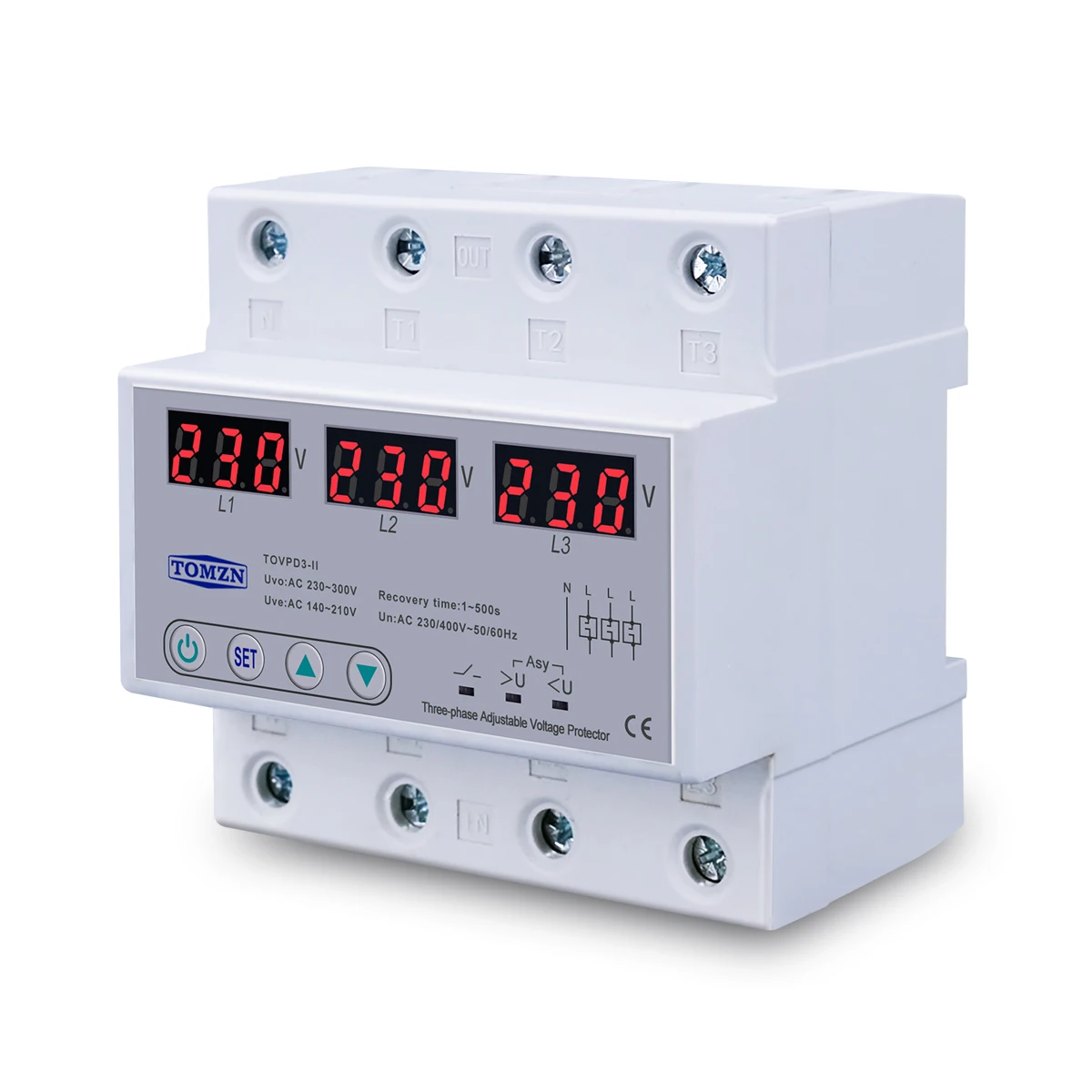

Threephase Ac 380V 400V 63A Multifunctional Over Under Voltage Protection Device Automatic Recovery Voltage Relay
Tomznbrand Automatic Over-Voltage And Under-Voltage Protector Is Suitable For Three-Phase Ac 380V, 50/60Hz, Rated Working Current 63A Or Less Loads.
Its Main Feature Is When The Circuit Has Over-Voltage Or Under-Voltage Probl, The Product Can Cut Off The Power Supply Instantaneously To Protect The Electrical Equipment From Being Damaged, Besides,The Protector Can Automatically Turn On The Power Supply When The Circuit Voltage Returns To The Normal.
Functions:
1.Over-Voltage Protection
2.Under-Voltage Protection
3.Automatic Recovery

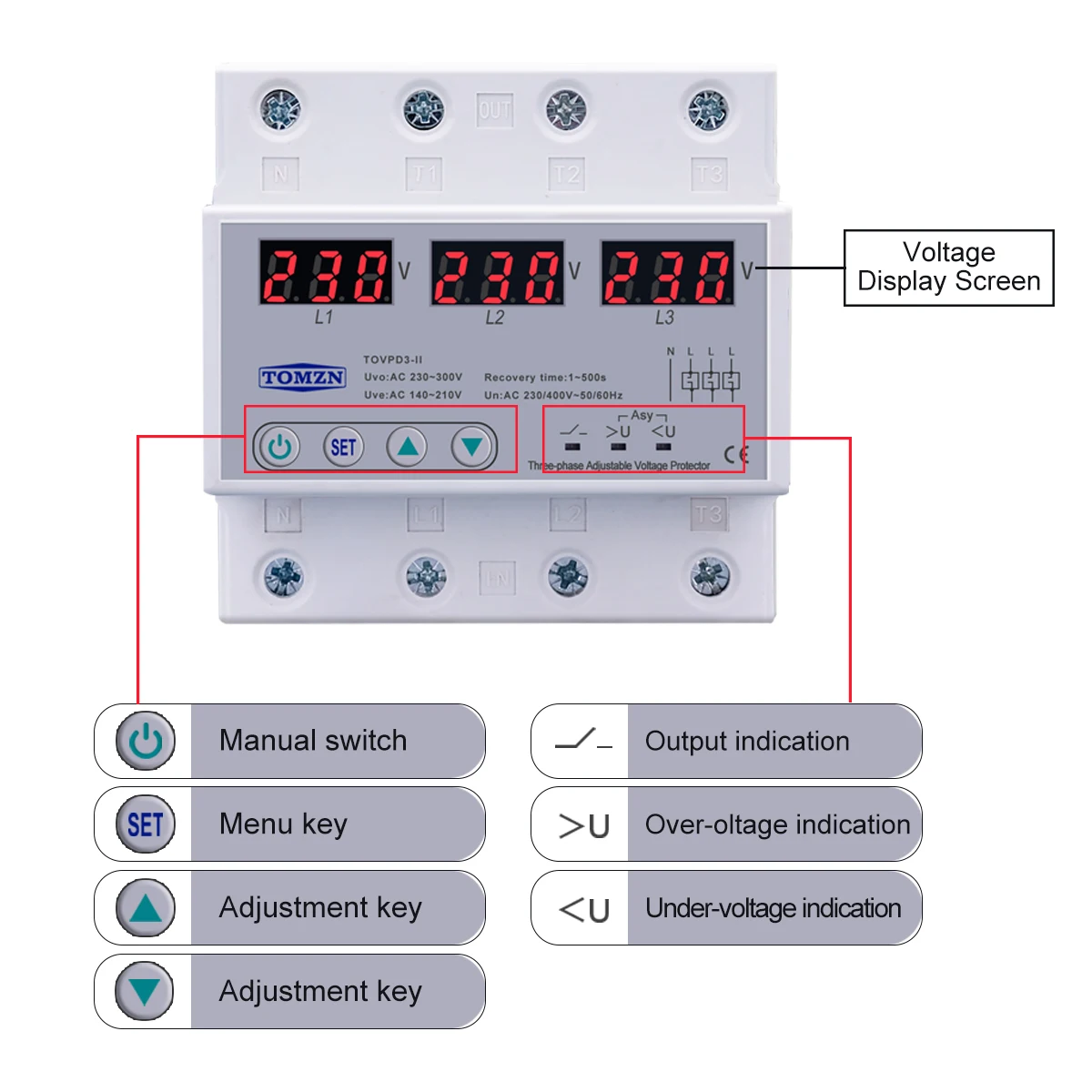

4.Voltage Display(Voltage Measurement)
5.Three-Phase Ampere Unbalance Protection
6.Phase Sequence Protection (Reverse Phase Protection)
7.Zero Line Break Protection
8.Phase Failure Protection
Product Parameters:
1.Model Number : Tovpd3
2.Power Supply:3*230V / 400V Ac 50/60Hz
3.Max.Loading Power:63A
4.Over-Voltage Protection Value Range:230V~300 Adjustable (Default:270V)
Over-Voltage Recovery Value Range:225V~295V (Default 265V)
Over-Voltage Protection Action Time:0.1~30 Second Default 1
5.Under-Voltage Protection Value Range:140V~210V Adjustable (Default:170V)
Under-Voltage Recovery Value Range:145V~215V (Default 175V)
Under-Voltage Protection Action Time:0.1~30 Second Default 1S
6.3 Phases Volt Unbalance
