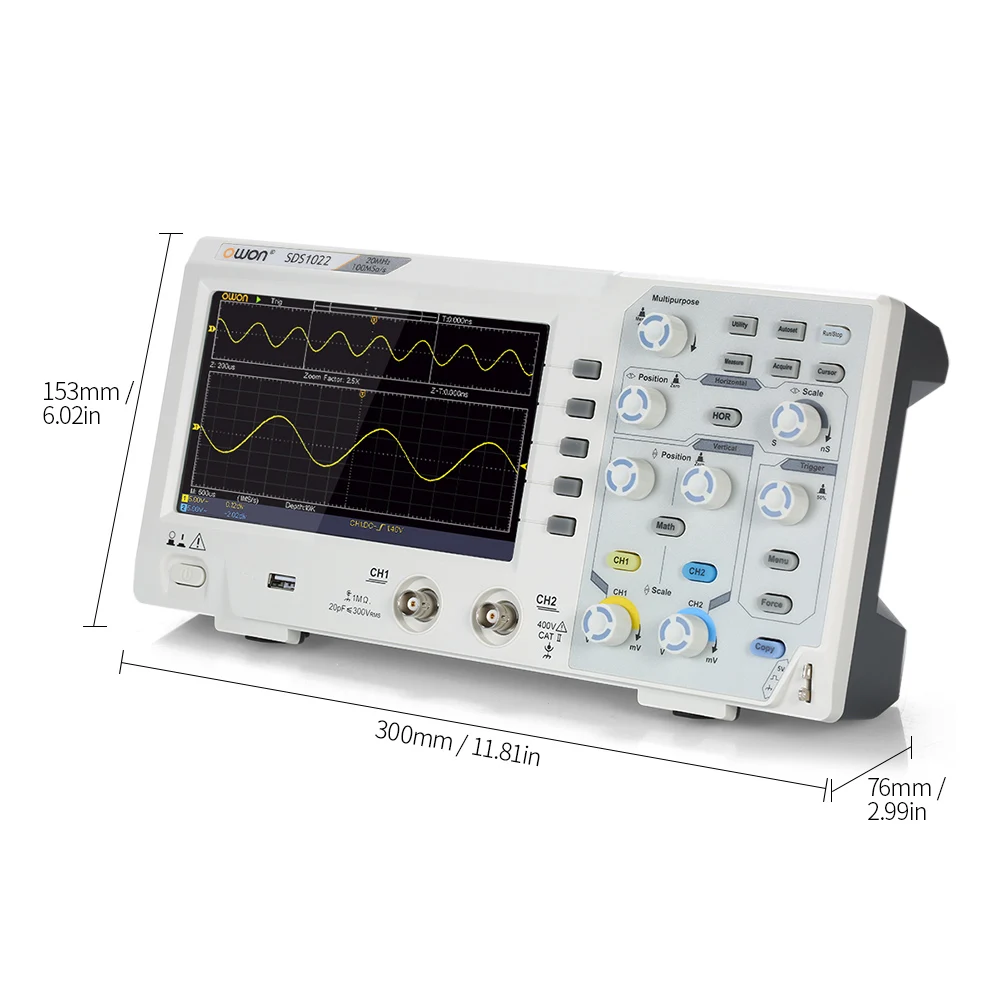

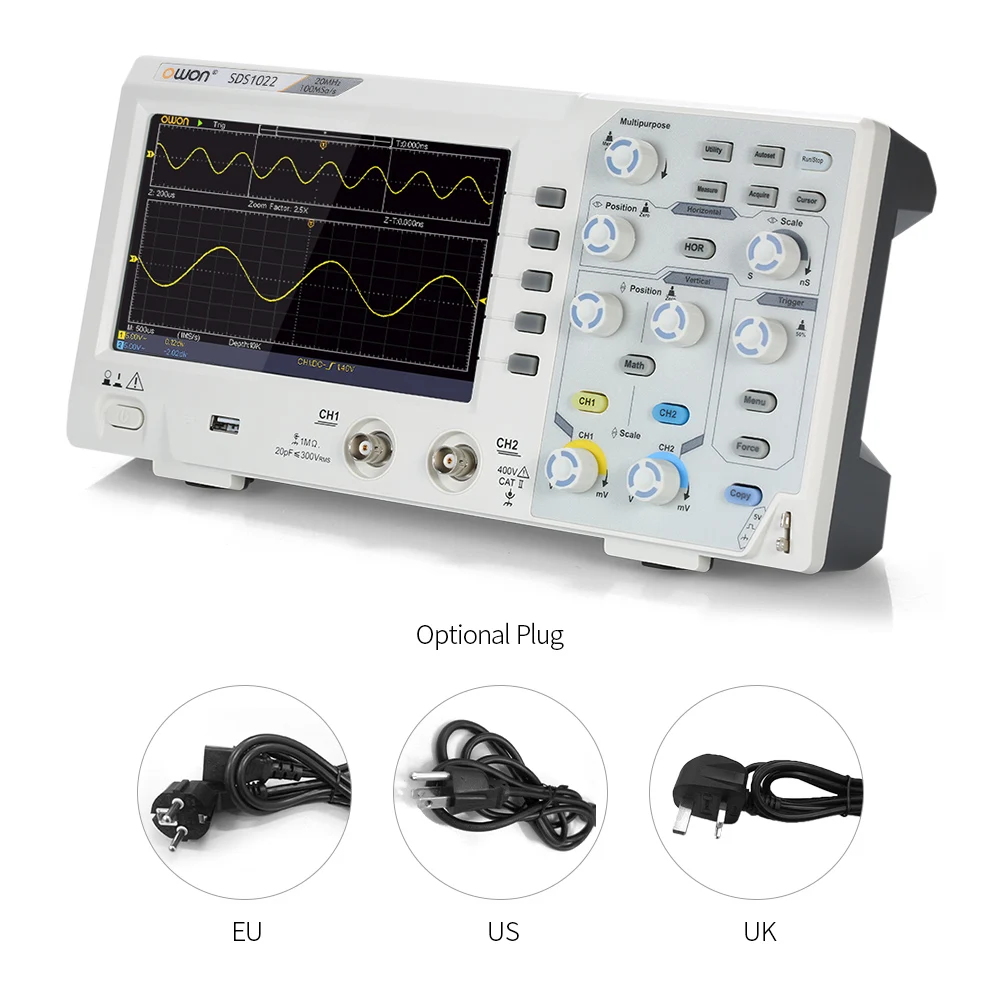

Sds1022 Digital Oscilloscope Oscillometer Digital Stora Sss
Kami Menyediakan Barang Yang Anda Butuhkan
– Item Tersedia
– Buka 24 Jam, Kec Admin Lagi Ketiduran
– Hub Kami Untuk Menanyakan Varian Barang
– Pengiriman Pat 6-15 Hari Sai
Brand Name : Kkmoon
Diy Supplies : Ectrical
Rtification : None
Origin : Cn(Origin)
Display Size : 7 Inches & Above
Is Battery Demountab : No
Digital Channels : 2
Model Number : Digital Oscilloscope
Real Time Sling Rate : 100Msa/S
Record Ngth : 10K
Band Width : Ss Than 60Mhz
Features:
20Mhz Bandwidth.
100Ms/S S Rate.
Time Base Ran: 5Ns/Div~100S/Div.
Rise Time: ?17.5Ns
2 Channels.
7.0-Inch High Resolution Lcd Display.
Support For Scpi And Labview.
Specifications:
Functions & Specifications Of Sds1022
Bandwidth
20Mhz
S Rate
100Ms/S
Horizontal Sca(S/Div)
5Ns/Div – 100S/Div, Step By 1-2-5
Rise Time (At Input, Typical)
?17.5Ns
Channel
2
Display
7″ Color Lcd, 800 ? 480 Pixels
Input Impedan
1M ? 2%, In Parall With 20Pf ? 5Pf
Channel Isolation
50Hz:100:1, 10Mhz:40:1
Max Input Volta
400V (Pk-Pk) (Dc+Ac, Pk-Pk)
Dc Gain Accuracy
?3%
Record Ngth
10K
Dc Accuracy (Avera)
Avera?16: ?(3% Reading+0.05Div) For V
Probe Attenuation Factor
1X, 10X, 100X, 1000X
Lf Respond (Ac, -3Db)
?10Hz (At Input, Ac Coupling, -3Db)
S Rate / Relay Time Accuracy
?100Ppm
Interpolation
Sin (X) / X
Interval(T) Accuracy (Full Bandwidth)
Sing: ?(1 Interval Time + 100Ppm ? Reading + 0.6Ns),
Avera16: ?(1 Interval Time + 100Ppm ? Reading + 0.4Ns)
Input Coupling
Dc, Ac, And Gnd
Vertical Resolution (A/D)
8 Bits (2 Channels Simultaneously )
Vertical Sensitivity
5Mv/Div – 5V/Div (At Input)
Trigr Type
Ed,
