Relay Module Dc 12V Relay Switch Control Board Module Relay
Selamat datang di SUPPLY IN,
SUPPLY IN merupakan jasa penyedia barang dengan kategori Tools dan Industri yang berkualitas langsung dari pabrik serta bisa CUSTOM sesuai dengan kebutuhan Anda.
– Item tersedia langsung dari pabrik
– Buka 24 jam cepat merespon
– Hubungi Kami Untuk Menanyakan varian Barang yang tersedia
– Pengiriman cepat 8-15 hari
Barang Tools & Industri dengan berbagai macam Jenis, Bentuk maupun berbagai variasi (silakan bertanya untuk mendapat kebutuhan Anda)
Note Penting: Kami juga bisa menyediakan segala jenis produk, silakan memilih fitur Online Quotation untuk penawaran menarik dari kami.
Selamat Bertransaksi!
Power Source : Dc
Voltage : 12V
Iscustomized : Yes
Usage : Protective
Model Number : Relay Switch Control Module
Load : Low Power
Protect Feature : Sealed
Theory : Time Relay
Origin : Mainland
Working Power : Dc 10-16V
Voltage Detection Range : Dc 0-99.9V
Error : +/-0.1V
Timing Range : 0-999 Minutes Cycle
Contract Load : 10A/277V Ac, 10A/30V Dc
Features:
Digital Display Dc Voltage Detection, Control The Relay Output.
Adjustable Voltage Limit: 0-99.9V.
When The Measured Voltage Is Lower Than The Lower Limit Or Higher Than Upper Limit Value, The Relay Works.

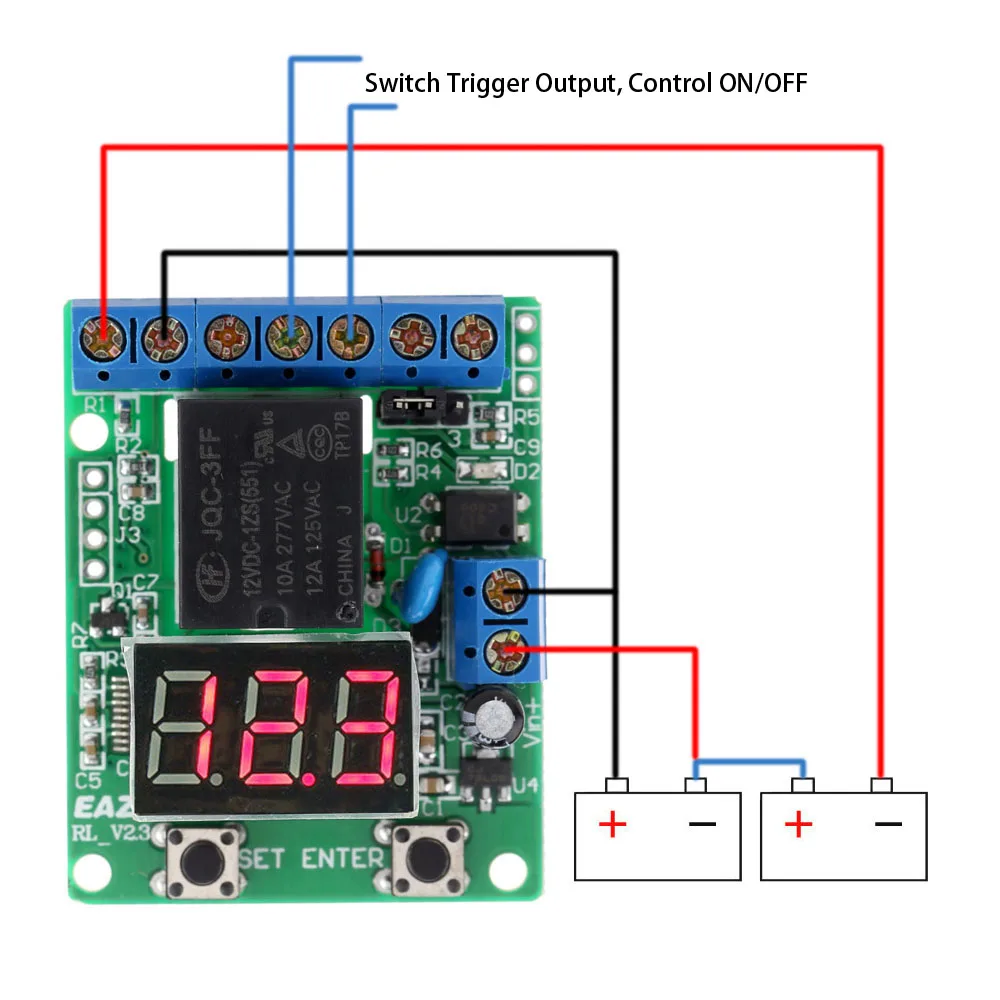

Can Be Used For Voltage Detection Switch, Battery Over/Under Voltage Protector Or Discharge Meter.
Notice:
The Relay Control Panel Features Single Mode Voltage Detection Function.
Max. Trigger Current Is 10A(Ac 277V, Dc 30V), Please Don’T Connect It With Load Over Dc 30V.
This Relay Module Is Not Suitable For Lithium Battery Discharge.
Polarity For Voltage Detection Can’T Be Connected Reversely, User Should Connect The Wire After Power Off.
Specifications:
Relay Voltage: Dc 12V
Working Power: Dc 10-16V
Voltage Detection Range: Dc 0-99.9V
Error: +/-0.1V
Timing Range: 0-999 Minutes Cycle

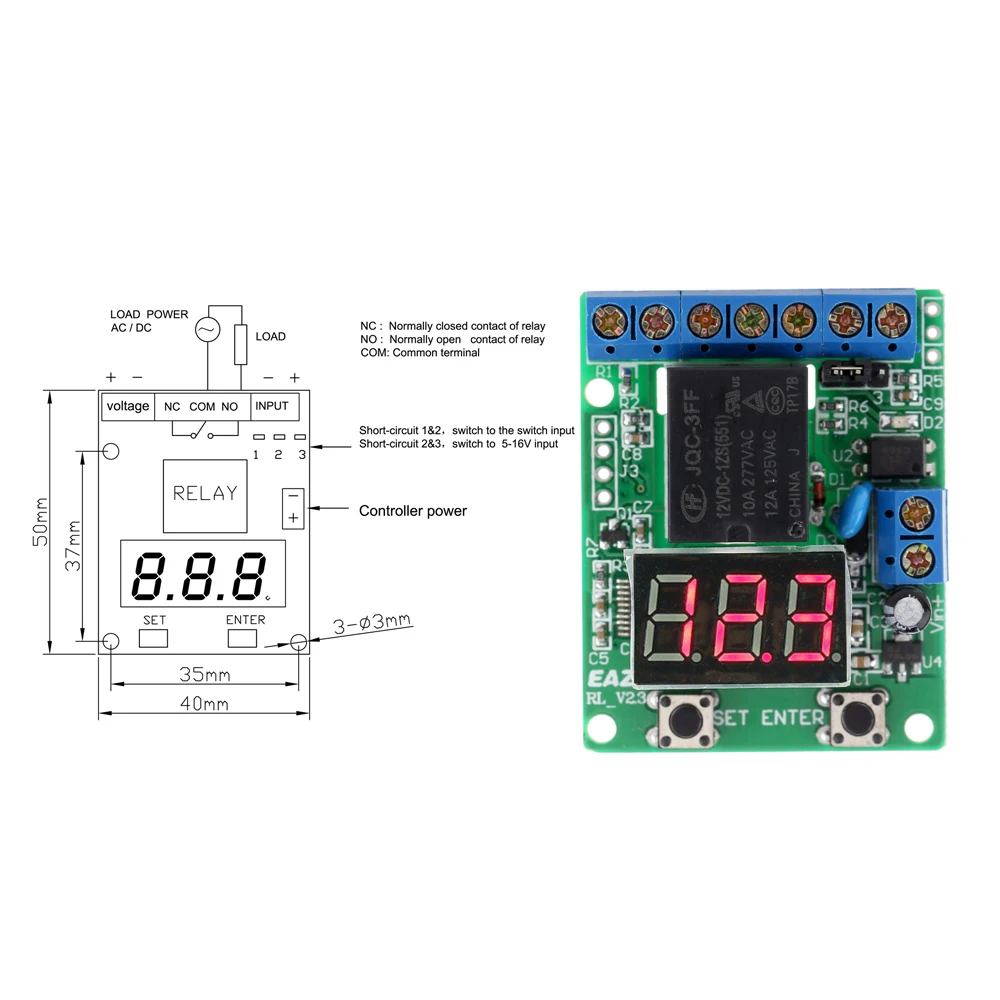

A Set Of Transformations(Normally Open/Normally Closes)
Contract Load: 10A/277V Ac, 10A/30V Dc
Contract Resistance: 100M1A-6V Dc
Mechanical Durability: 10 Million
Electrical Durability: 100,000 (10A-250V Ac)
Standby Current: 16Ma 12V, Digital Display Closed Smallest 6Ma/12V, Relay Timely 45Ma/12V
Working Temperature:
