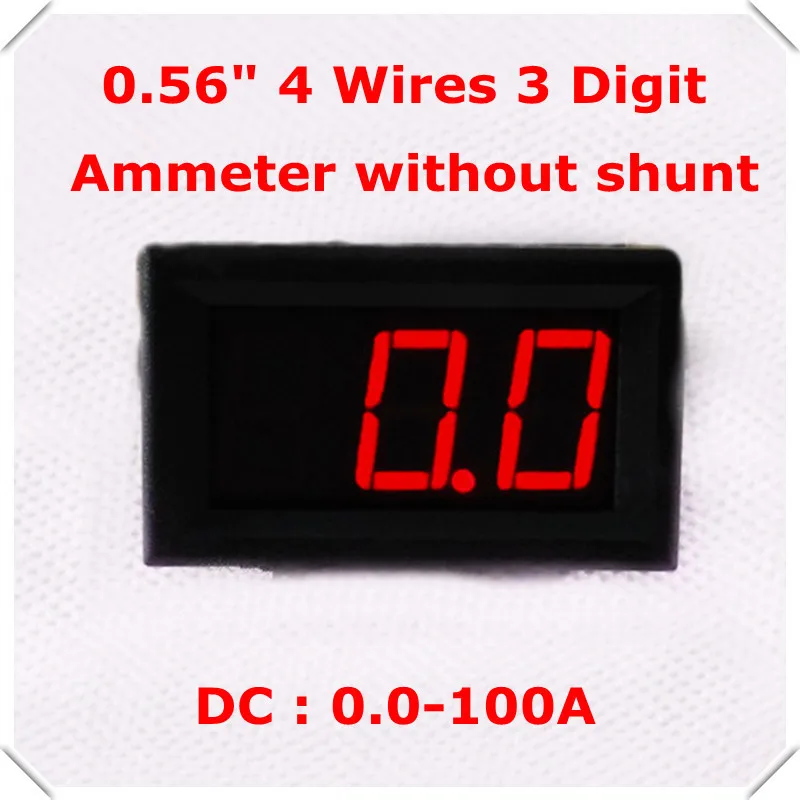

Rd D Display Color 0.56″ Digital Ammeter Dc 0-100A 4 Sss
Kami Menyediakan Berbagai Macam Barang Berkualitas

– Item Selalu Tersedia
– Pengiriman Pat
– Hub Kami Untuk Menanyakan Varian Barang

Accuracy Class : No
Diy Supplies : Ectrical
Supply Volta : 4-30V
Model Number : A-100
Operating Temperature : -10 Rees~65 Rees
Brand Name : Rd
Display Type : Digital Only
Measuring Ran : Dc 0.0-100A
Dimensions : 48 X 29 X 22 Mm (L*W* H)
Current Ran : Dc0.00-99.9A
Shunt : No

All Our Products Are Devised And Produd By Ourselves. So Believe That Our Quality,And Servi Will Definitely Give You Satisfaction

Note:

One Lot Only Contain 10 Pcs0-100Aammeter, Without Shunt. But This Ammetermust Be Used Tother With Shunt.

Technical Parameters

:

Weight:

22G

Display Color

: Red/Green/Blue

Display Mode
: Three 0.56 D Digital Tube

Update Rate
: Aboutms/Time

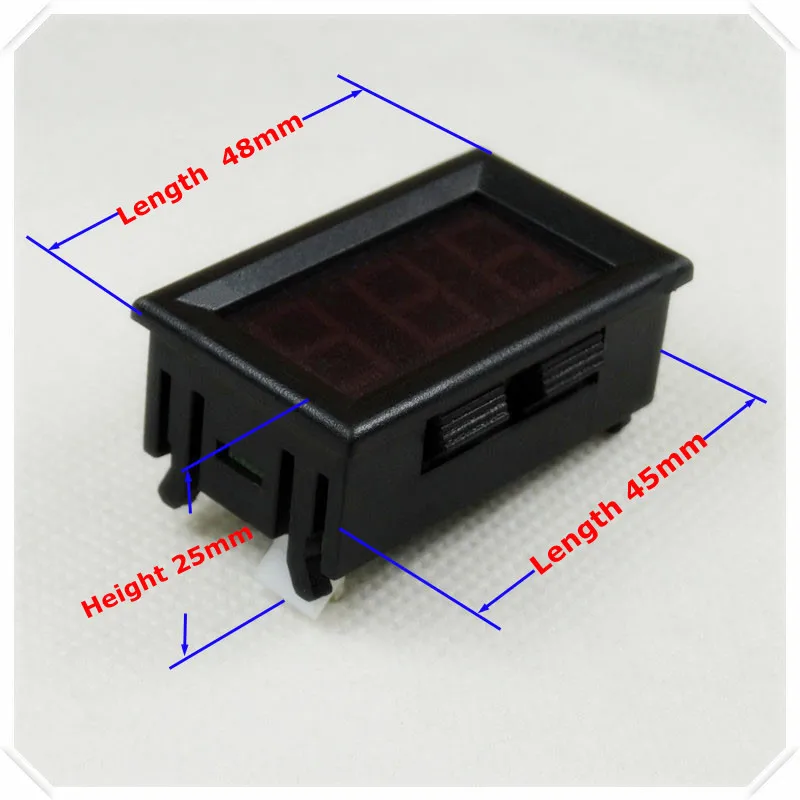

Physical Size

:48 X 29 X 22 Mm (L*W* H)

Opening Size:

45 X 26 Mm (L*W)

Supply

Volta :

4-30V

Ad Wire Ngth

: 14 Cm

Measurement Ran

:Dc 0.0-100A

Operation Temperature

: -10 Rees~65 Rees

Measurement Accuracy

: ? (1% + 2 Words)

Note:
(Pase Follow The Instructions Carefully Wiring, Or Burn Out
)

The Power Supply End Of The Ammeter And Measuring The Ground Uses A Total Design, That Is To Say, The Power Supply Ground Wire And Test The Ground Wire Is Mutually, So Only String Ammeter Test End After The Ectric Applians (Both Devis Being Measured Between The Cathode And Tested Equipment Power Of Cathode)

Advi Header Power Supply To Use Isolated Power Supply Separately

In Order To Prevent Being Damad The Shunt Must Be Connected Firstly Before Using, Then Connect The Voltmeter.

Instruction Of
