Propane Fire Pit Gas Control Valve System Kit Regulator
Selamat datang di SUPPLY IN,
SUPPLY IN merupakan jasa penyedia barang dengan kategori Tools dan Industri yang berkualitas langsung dari pabrik serta bisa CUSTOM sesuai dengan kebutuhan Anda.
– Item tersedia langsung dari pabrik
– Buka 24 jam cepat merespon
– Hubungi Kami Untuk Menanyakan varian Barang yang tersedia
– Pengiriman cepat 8-15 hari
Barang Tools & Industri dengan berbagai macam Jenis, Bentuk maupun berbagai variasi (silakan bertanya untuk mendapat kebutuhan Anda)
Note Penting: Kami juga bisa menyediakan segala jenis produk, silakan memilih fitur Online Quotation untuk penawaran menarik dari kami.
Selamat Bertransaksi!

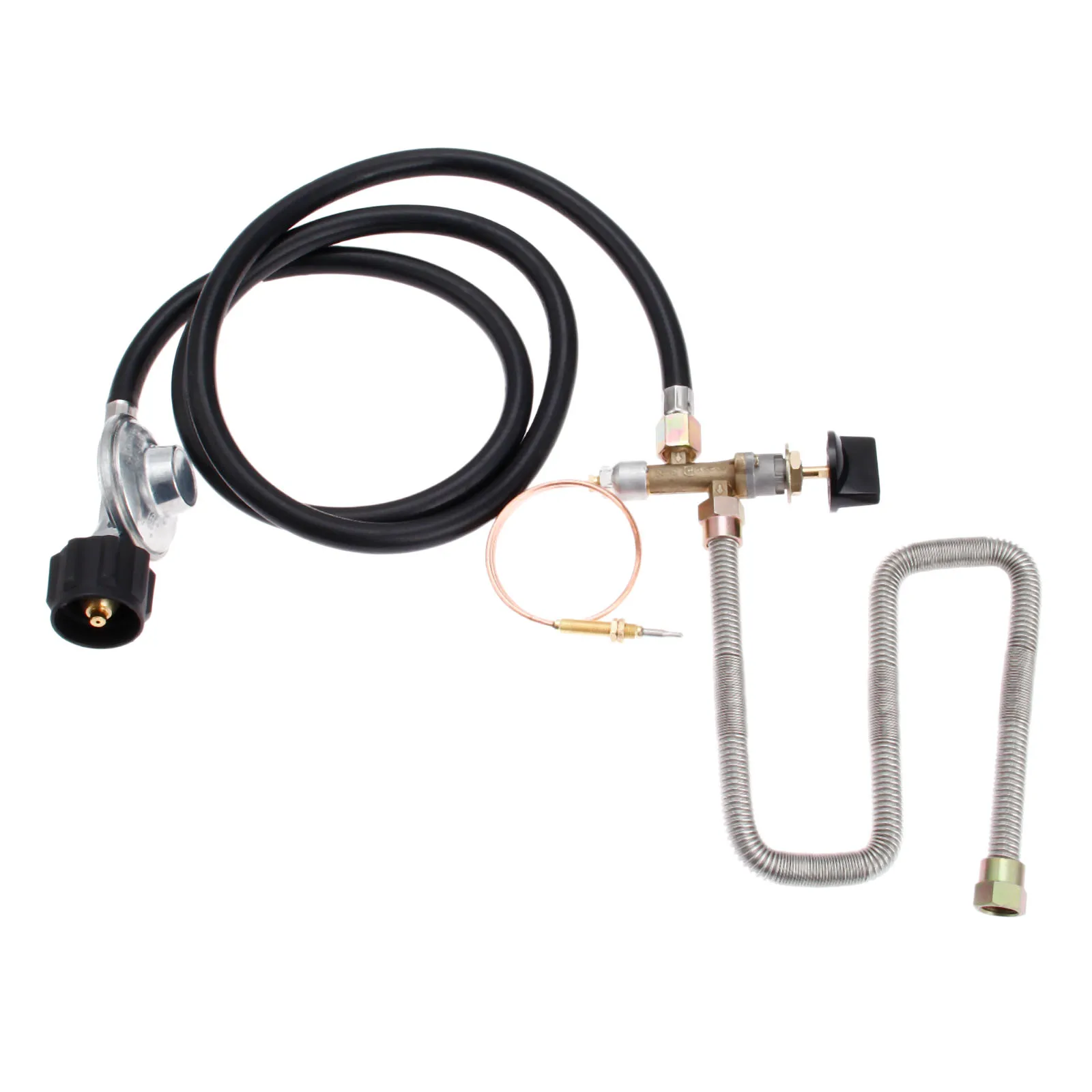

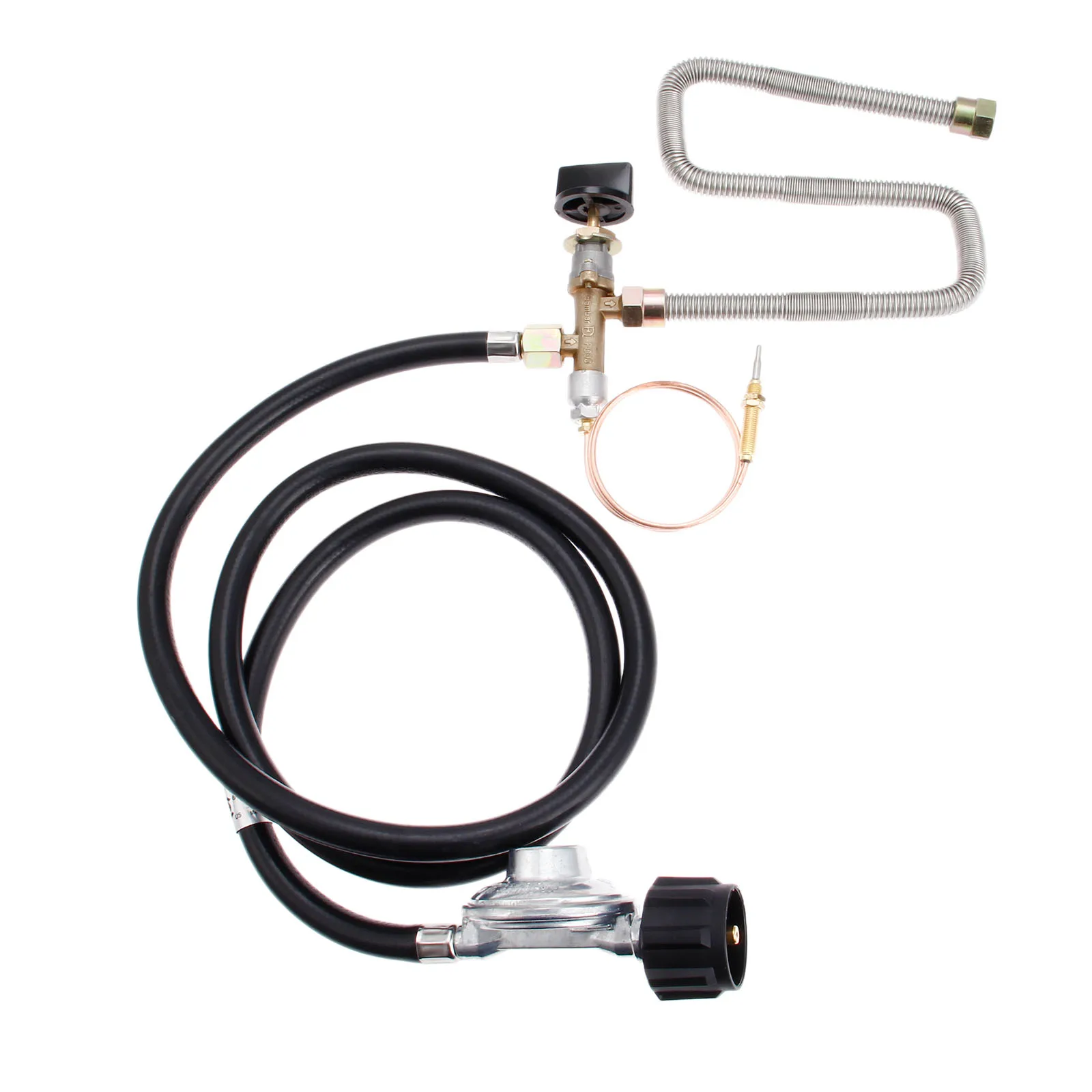

Model Number : Propane Fire Pit Control Valve System Kit
Origin : Mainland
Features:
All Parts Can Be Directly Connected
Csa Approved Parts

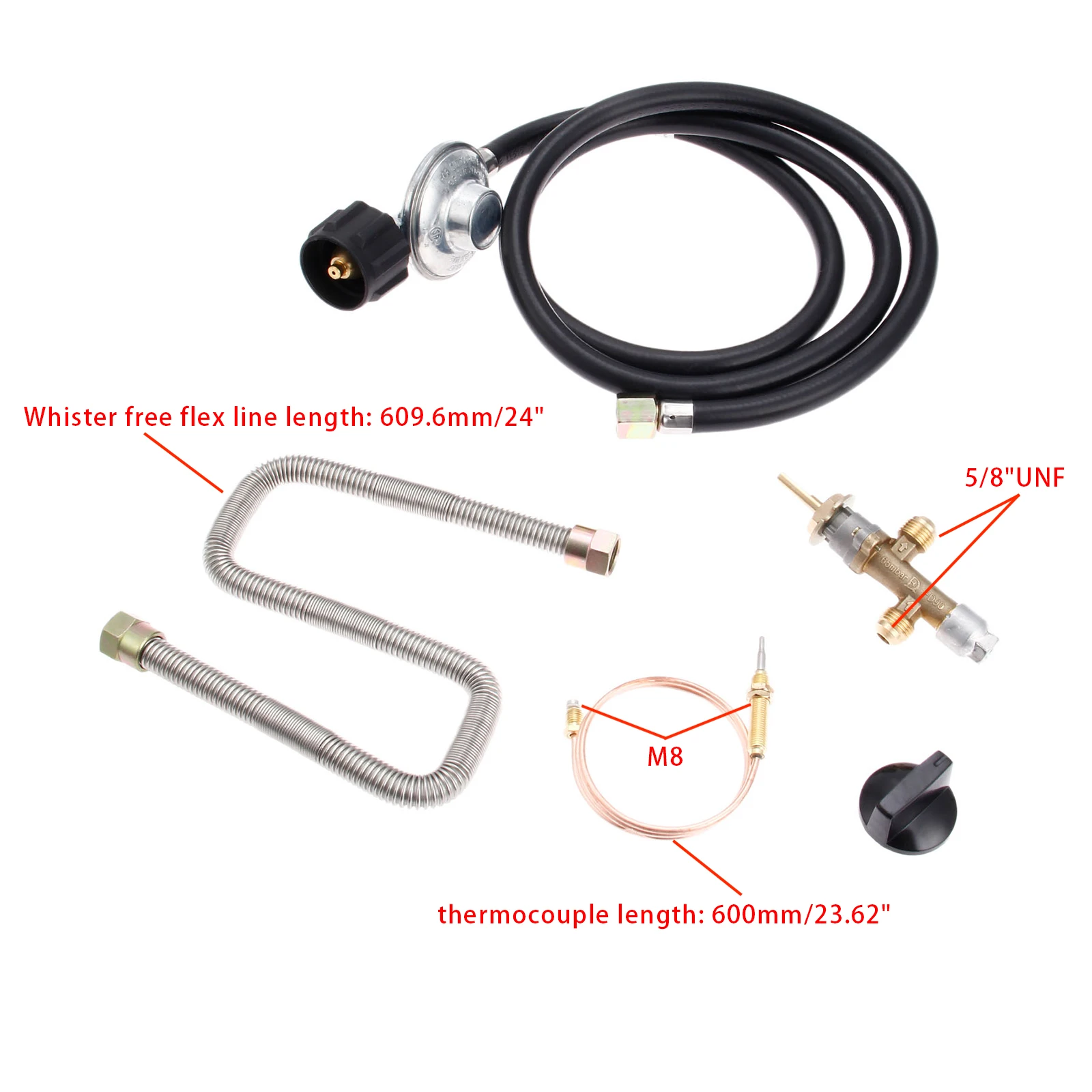

Specifications:

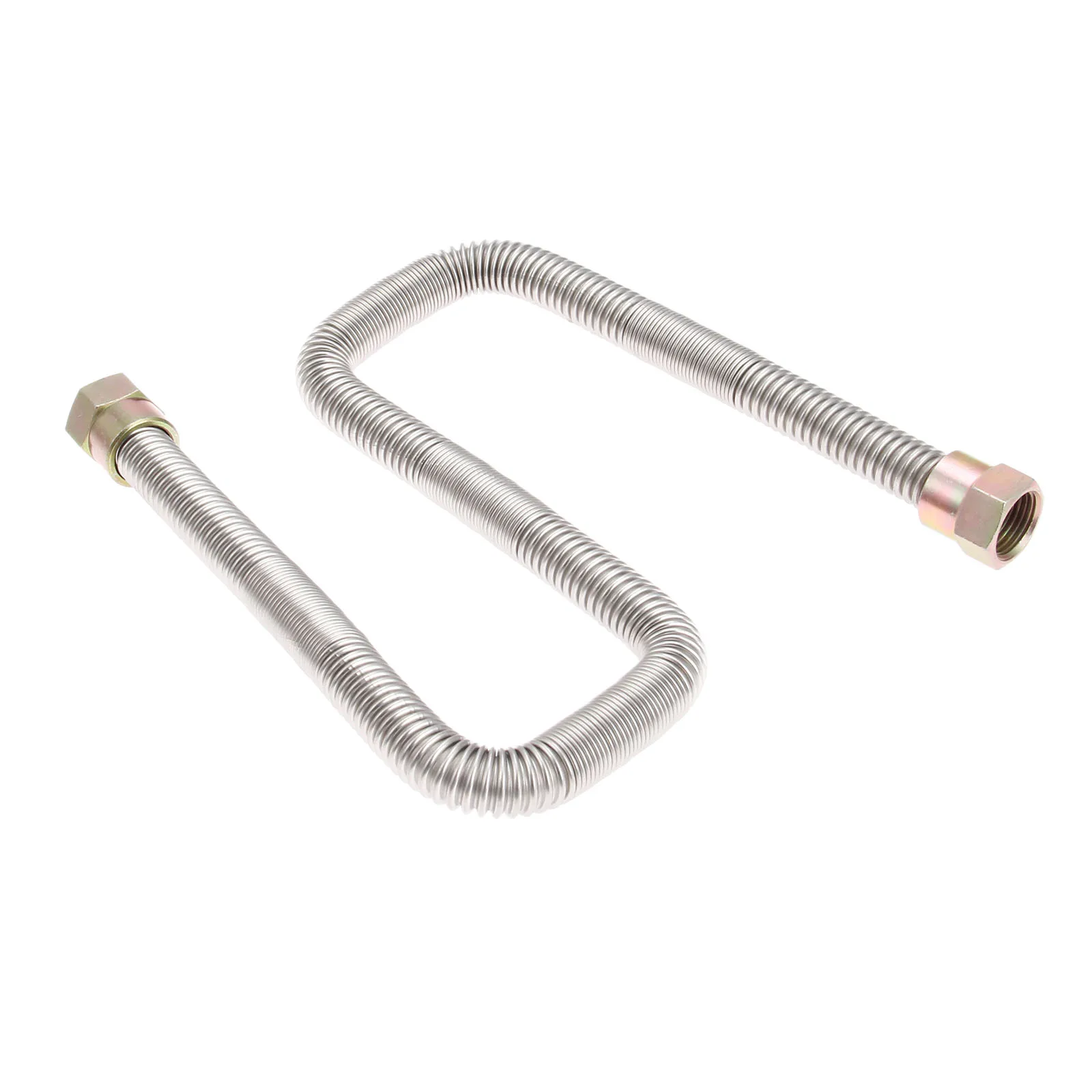

24 Whister Free Flex Line 1 Pc

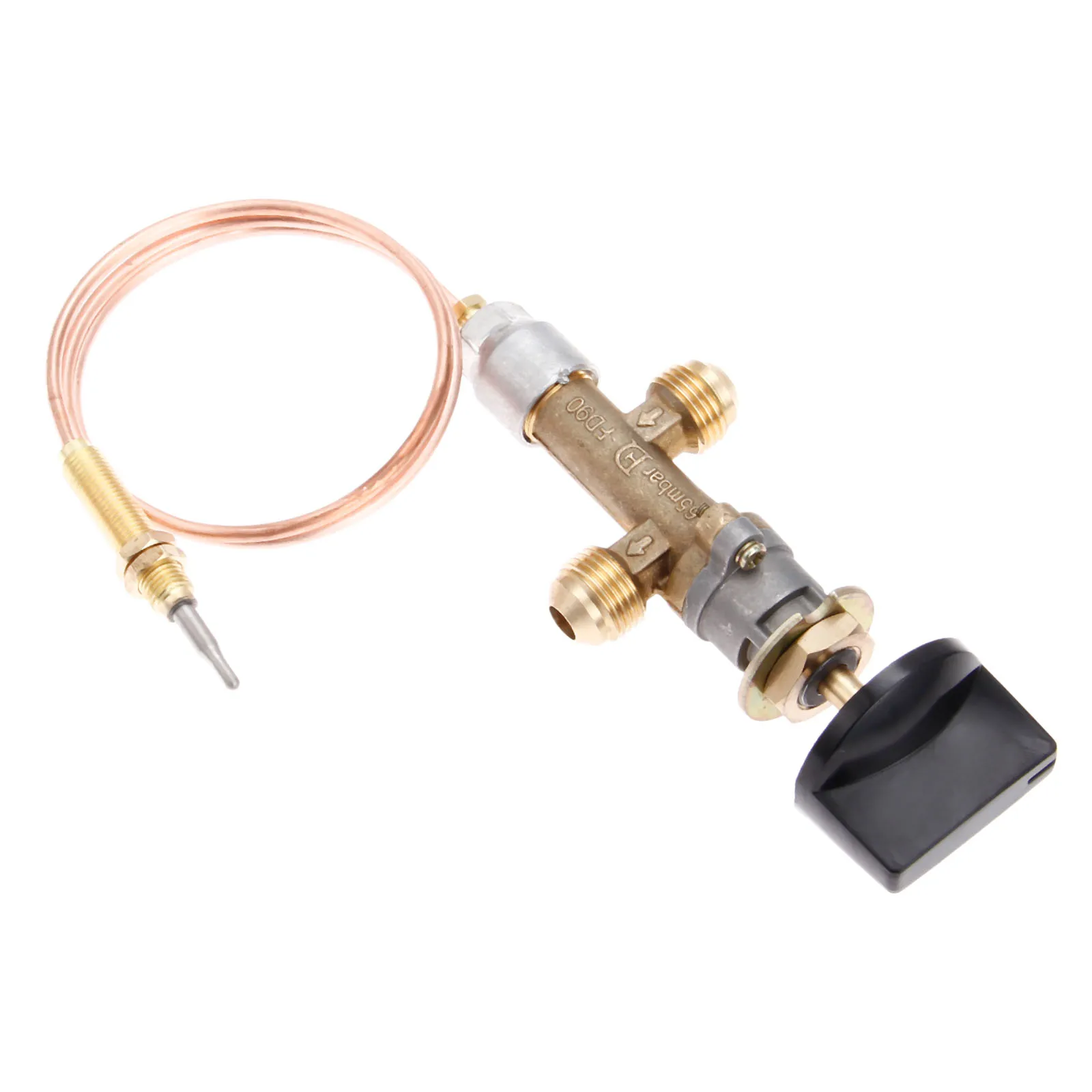

3/8 Female Flare Thread Control Flame Failure Safety Valve 1Pc With Knob
600Mm Universal M8 Thermocouple 1Pc
Low Pressure Qcc1 Connection Propane Regulator With Hose 3Ft 1Pc
Install Steps:
1. Install The Thermocouple Tip On A Board And Use Two Nuts To Fix Its Location
2. Keep The Tip About 5Mm From The Burner Hole.
3. Fix The Thermocouple Nut M8 On The Valve End Tightly (Check If Your Valve End Thread Is 8Mm Before Your Buying)
4. Connect Two Flat Terminals Well With The Current Tilt Switch Terminals.
5. Turn On The Gas And Push Your Valve 5-10S Till The Thermocouple End Is Heated.
6. Release Your Hand And It Work Well. If Failed, Please Check
A. If Your Thermocouple Is Heated On Flame
B. If The Thermocouple End Is Well Connected With Valve
C. If The Terminals Connect Tilt Switch Well.
Package Included:
1Pcs X Propane Fire Pit Control Valve System
