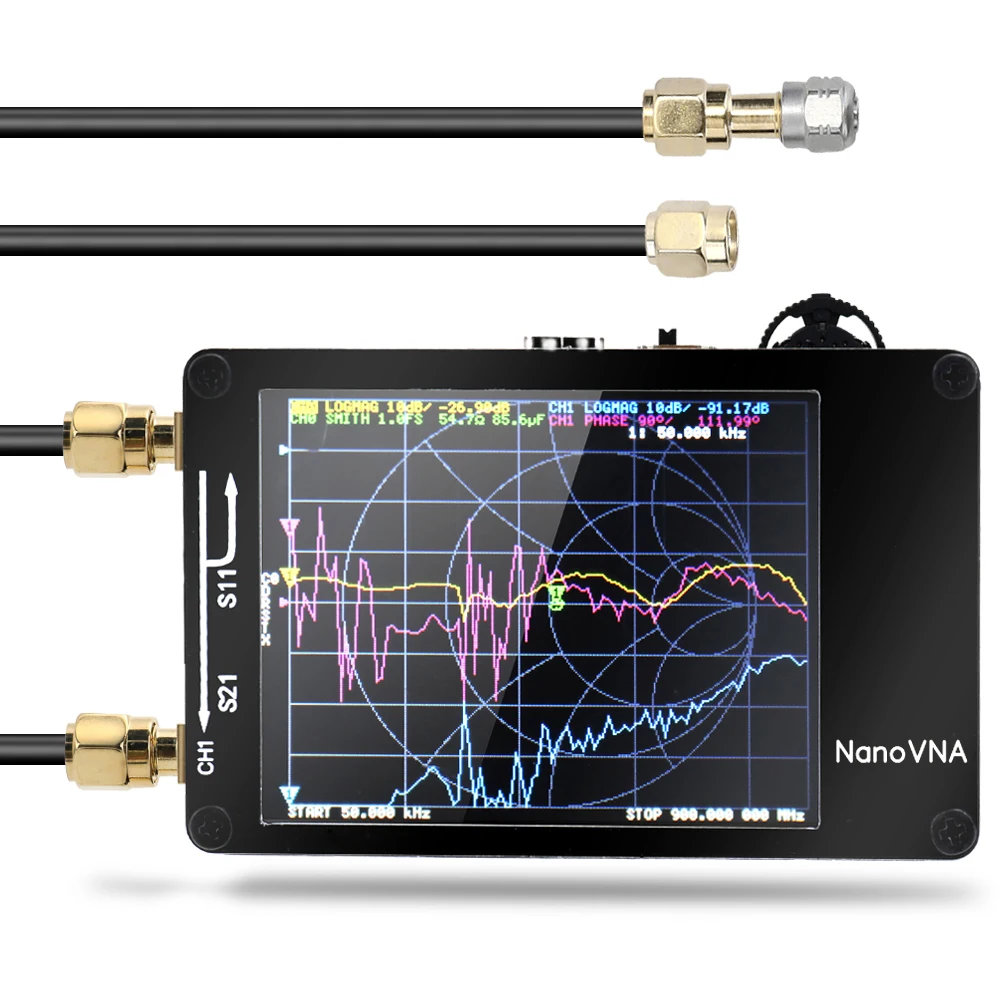

This Is A Diy Product With Vector Network Measurement Function. It Includes A 2.8-Inch Touching Screen, Tx/Rx Measurement, Can Determine The Compte S11 And S21 Parameters, If You Need To T S12 And S22, You Need To Manually Repla The Transiver Port Wiring.
Features:
The Pc Control Software Can Export Touchstone (Snp) Fis, Which Can Be Used For Various Radio Design And Simulation Software.
The Improved Frequency Algorithm Can Use The Odd Harmonic Extension Of Si5351 To Support The Measurement Frequency Up To 900Mhz.
The Metal Shield Is Designed To Redu The External Interferen And Improve The Measurement Accuracy.
The 50K-300Mhz Frequency Ran Of The Si5351 Direct Output Provides Better Than 70Db Dynamic.
The Extended 300M-600Mhz Band Provides Better Than 50Db Of Dynamics, And The 600M-900M Band Is Better Than 40Db Of Dynamics.
Small And Portab, Easy To Use, This Project Aims To Provide An Rf Gadt But Useful Instrument For Enthusiast.
Specifications:
Material: Pcb
Color: Black
Measurement Frequency: 50Khz~300Mhz (50Khz~900Mhz, Enab Extended Firmware)(The Products Will Be Updated With The Latest Firmware Before , The Actual Measurement Frequency Is 50Khz~900Mhz)
Rf Output: -13Dbm (Maximum -9Dbm)
Frequency Accuracy: 0.5Ppm
Measurement Ran: 70Db (50Khz-300Mhz), (50Db (300M-600Mhz), 40Db (600M-900Mhz) Enab Extended Firmware)
Port Swr: 1.1
Display: 2.8 Inch Tft (320*240)
Usb Interfa: Usb Type-C
Communication Mode: Cdc
