Moons Mini 16Mm Precision Planetary Reducer Step Motor High
Selamat datang di SUPPLY IN,
SUPPLY IN merupakan jasa penyedia barang dengan kategori Tools dan Industri yang berkualitas langsung dari pabrik serta bisa CUSTOM sesuai dengan kebutuhan Anda.
– Item tersedia langsung dari pabrik
– Buka 24 jam cepat merespon
– Hubungi Kami Untuk Menanyakan varian Barang yang tersedia
– Pengiriman cepat 8-15 hari
Barang Tools & Industri dengan berbagai macam Jenis, Bentuk maupun berbagai variasi (silakan bertanya untuk mendapat kebutuhan Anda)
Note Penting: Kami juga bisa menyediakan segala jenis produk, silakan memilih fitur Online Quotation untuk penawaran menarik dari kami.
Selamat Bertransaksi!
Current / Phase : Not Clear
Holding Torque : Not Clear
Step Angle(Rees) : 18
Phase : 2
Model Number : 20Mm Gear Stepper Motor
Type : Permanent Magnet
Certification : Ce,Iso,Rohs
Origin : Mainland
Voltage Range : 5V-9.6V
Current Range : 0.15A-0.2A
Condition : Used
Torque : About 0.1 Nm
To All Buyer Friends:Stepper Motor Requires Stepper Motor Driver Board To Work!The Link Below Is A Multi-Function Stepper Motor Driver Board. In Order To Save Your Time, It Is Recommended To Buy Together.
Specification
:
Condition :Used

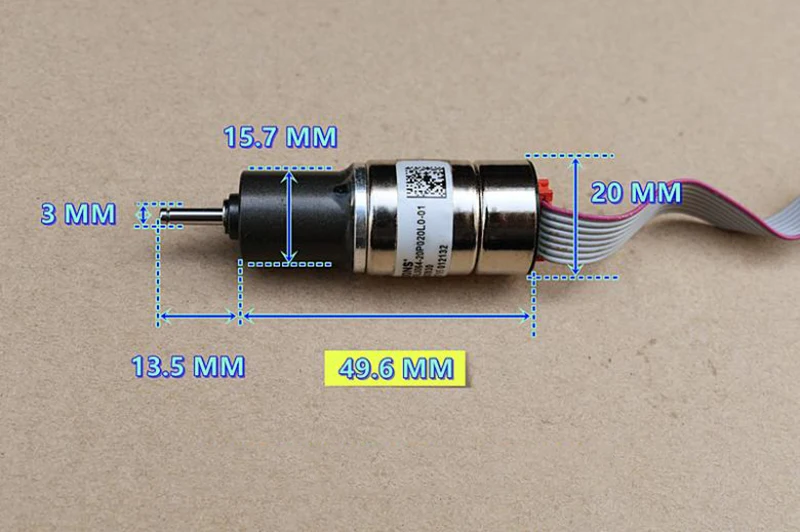

Motor Outer Diameter: 20 Mm
Reducer Outer Diameter: 15.7 Mm
Output Shaft Diameter: 3 Mm
Output Shaft Length: 13.5 Mm
Motor Height: 49.6 Mm (Motor + Gear Box)
Motor Weight: 54 Grams
Motor Phase Resistance: 6.4 Ohms
6V Short-Circuit Current: 0.82 A
Planetary Gearbox: Three-Level Planetary Reduction
Reduction Ratio: 1:64 (1280 Pulses Per Revolution)
Motor Step Angle: 18 Rees
Output Shaft Step Angle: 0.28125 Rees
Tips:
We Test The Working State Of 5V-12V Voltage Of This Stepper Motor. 6V-9.6V Can Work For A Long Time. When The Voltage Reaches 12V, The Motor Will Be A Bit Severe,
12V Voltage Is Not Suitable For Long-Term Operation.

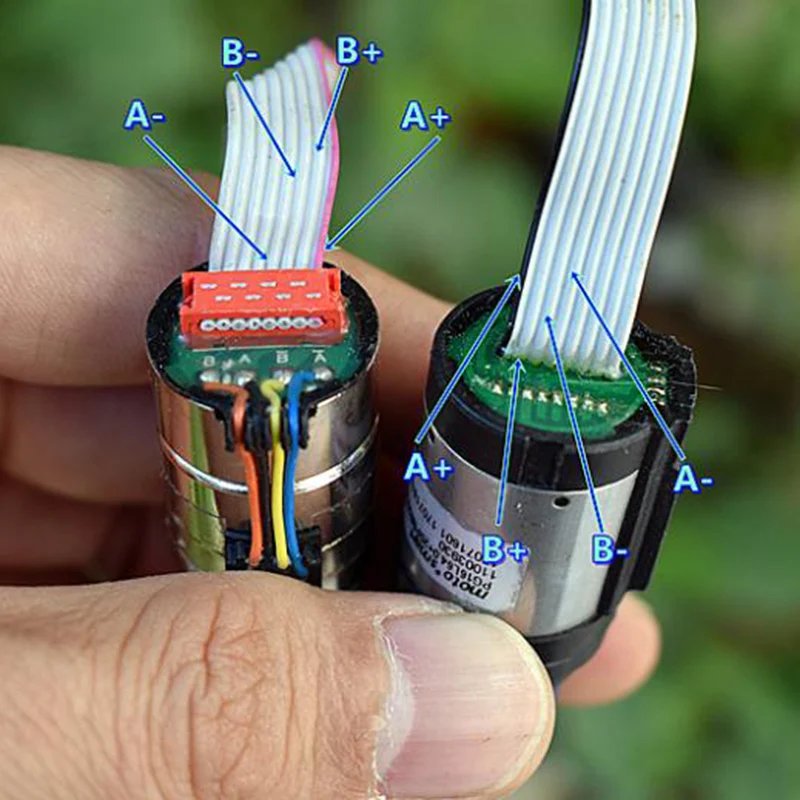

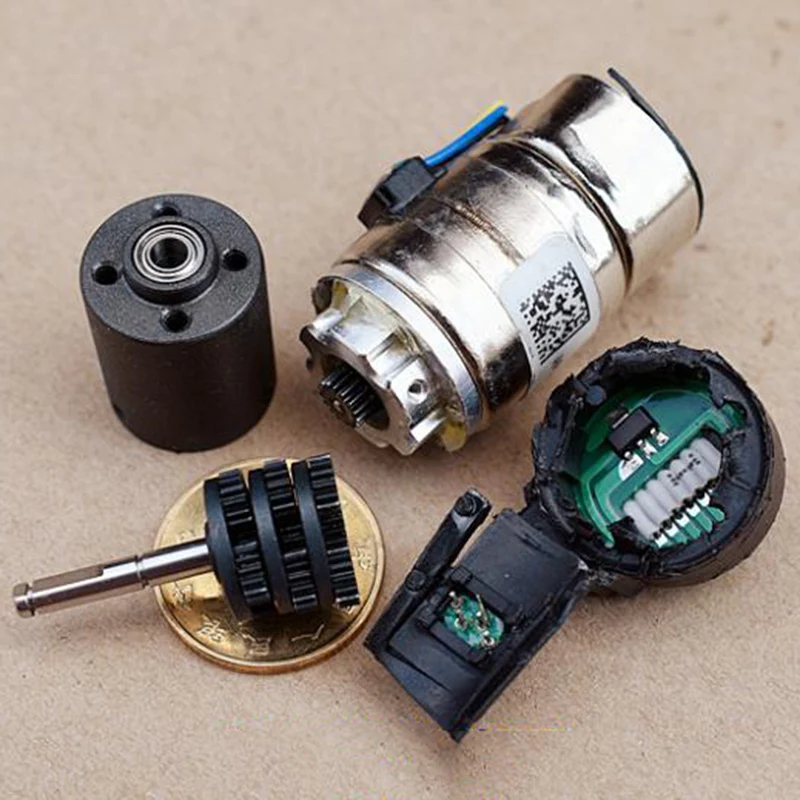

Disassembled Precision Stepping Planetary Reduction Motor. The Motor Is A Two-Phase Four-Wire 20 Mm Stepper Motor With A Feedback At The Back. The Reduction Gearbox Is An All-Metal Planetary Reduction Gearbox. The Three-Stage Planetary Gear Is Decelerated. The Output Shaft Is Double Ball Bearings The
