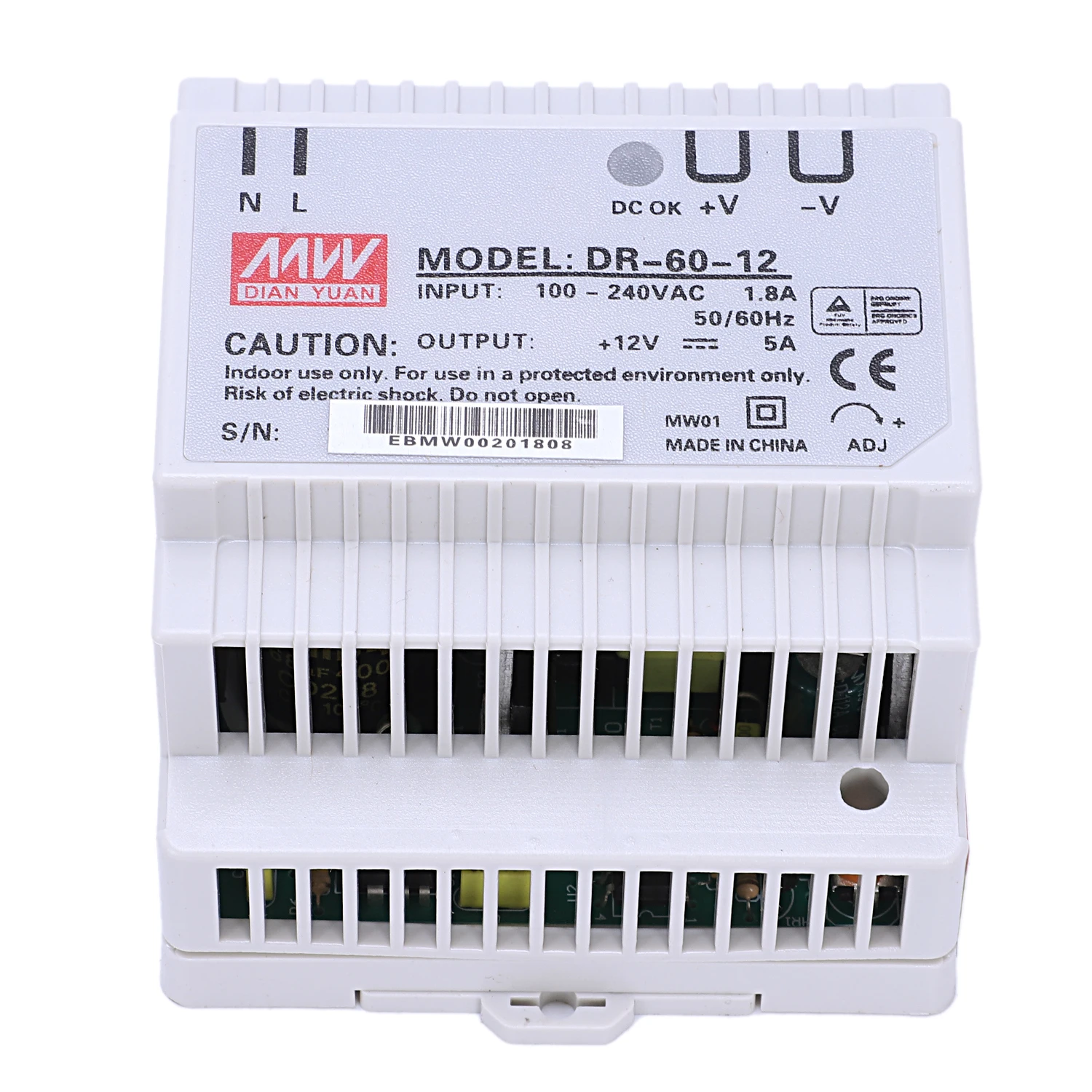

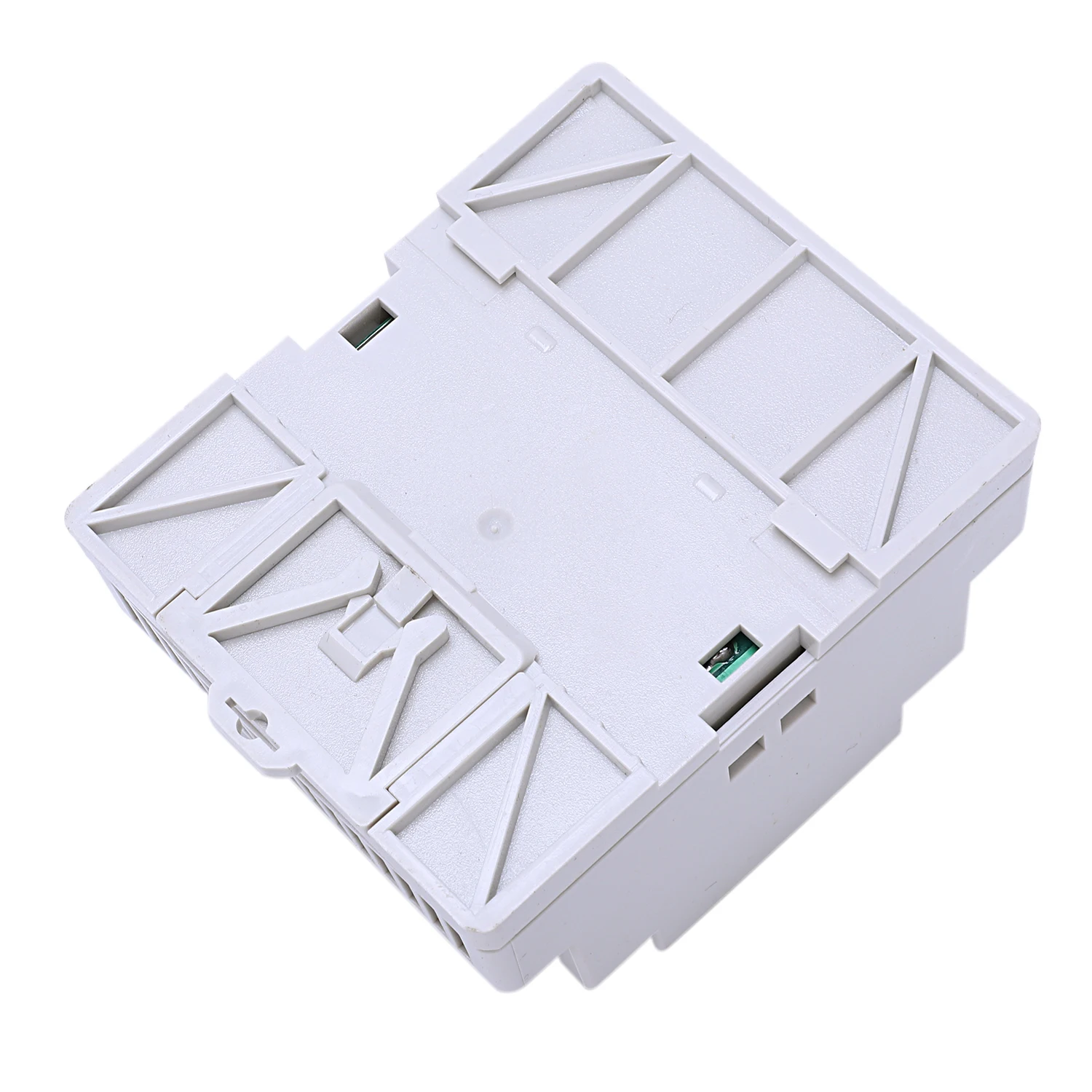

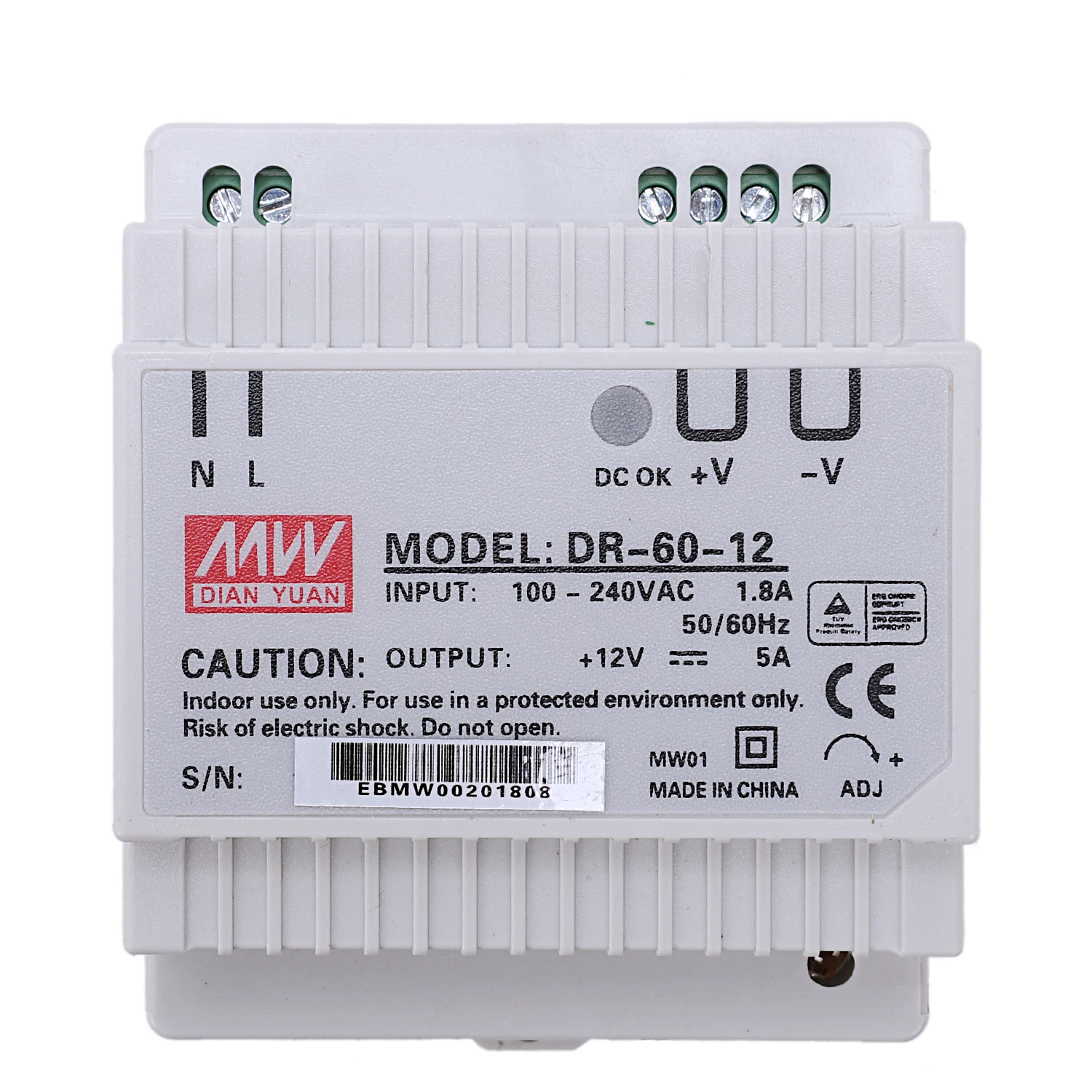

Din Rail Power Supply 60W 12V Ac Dc Converter Dr-60-12
Selamat datang di SUPPLY IN,
SUPPLY IN merupakan jasa penyedia barang dengan kategori Tools dan Industri yang berkualitas langsung dari pabrik serta bisa CUSTOM sesuai dengan kebutuhan Anda.
– Item tersedia langsung dari pabrik
– Buka 24 jam cepat merespon
– Hubungi Kami Untuk Menanyakan varian Barang yang tersedia
– Pengiriman cepat 8-15 hari
Barang Tools & Industri dengan berbagai macam Jenis, Bentuk maupun berbagai variasi (silakan bertanya untuk mendapat kebutuhan Anda)
Note Penting: Kami juga bisa menyediakan segala jenis produk, silakan memilih fitur Online Quotation untuk penawaran menarik dari kami.
Selamat Bertransaksi!
Iscustomized : Yes
Output Current : 0-5A
Output Frequency : 50Hz
Model Number : Din Rail Power Supply 60W 12V Ac Dc Converter
Output Type : Other
Output Power : 51 – 100W
Certification : None
Origin : Mainland
Din Rail Power Supply 60W 12V Ac Dc Converter Dr-60-12 Power Supply 12V 60W Good Quality
Output Power: 51 – 100W; Output Type: Single; Output Frequency: 50Hz; Output Current: 0-5A
Model: Dr-60-12
Note: 1. All Parameters Not Specially Mentioned Are Measured At 230Vac Input, Rated Load And 25 Celsius Of Ambient Temperature.
2. Ripple & Noise Are Measured At 20Mhz Of Bandwidth By Using A 12 Inch Twisted Pair-Wire Terminated With A 0.1Uf & 47Uf Parallel Capacitor.
3. Tolerance: Includes Set Up Tolerance, Line Regulation And Load Regulation.
Output
Dc Voltage 12V
Voltage Tolerance /-1%
Rated Current 4.5A
Current Range 0~3.5A
Rated Power 54W
Ripple&Noise 100Mvp-P
Dcvoltage Adj.Range /-10%
Input
Voltage Range 90~264Vac,127~373Vdc
Frequency 47~63Hz
Ac Current 1.2A/110Vac,0.65A/220Vac
Efficiency 82%
Inrush Current
Cold Start Current 25A/115Vac,50A/230Vac
Leakage Current
Less Than 1Ma/240Vac
Protection
Over Load
Rated Output Power105 Start Over Load Protection
Protection Type: Hiccup Mode,Auto-Recovery After Fault Condition Is Removed
Over Voltage 15.6~17.8V
Protection Type: Cut Off Output Voltage,Diode Clamp
Environment
Working Temp,Humidity
-20 Celsius~ 60 Celsius,20Rh
Storage Temp,Humidity
-40 Celsius~ 85 Celsius,10Rh Non-Condensing
Withstand Vibration
10~500Hz,2G
