Dc24V Programmable Plc Controller Plc Industrial Control
Selamat datang di SUPPLY IN,
SUPPLY IN merupakan jasa penyedia barang dengan kategori Tools dan Industri yang berkualitas langsung dari pabrik serta bisa CUSTOM sesuai dengan kebutuhan Anda.
– Item tersedia langsung dari pabrik
– Buka 24 jam cepat merespon
– Hubungi Kami Untuk Menanyakan varian Barang yang tersedia
– Pengiriman cepat 8-15 hari
Barang Tools & Industri dengan berbagai macam Jenis, Bentuk maupun berbagai variasi (silakan bertanya untuk mendapat kebutuhan Anda)
Note Penting: Kami juga bisa menyediakan segala jenis produk, silakan memilih fitur Online Quotation untuk penawaran menarik dari kami.
Selamat Bertransaksi!
Model Number : Plc Control Board
Motor Type : Dc Motor
Brand Name : Vbestlife
Certification : None
Origin : Mainland
Type 1 : Plc Control Board
Type 2 : Plc Industrial Control Board
Type 3 : Plc Programmable Controller
Weight : 239G/8.4Oz
Input Point : 8
Output Point : 6
Power Supply Voltage : Dc24V
Output Current : 5A
Analog Input : 6Ad

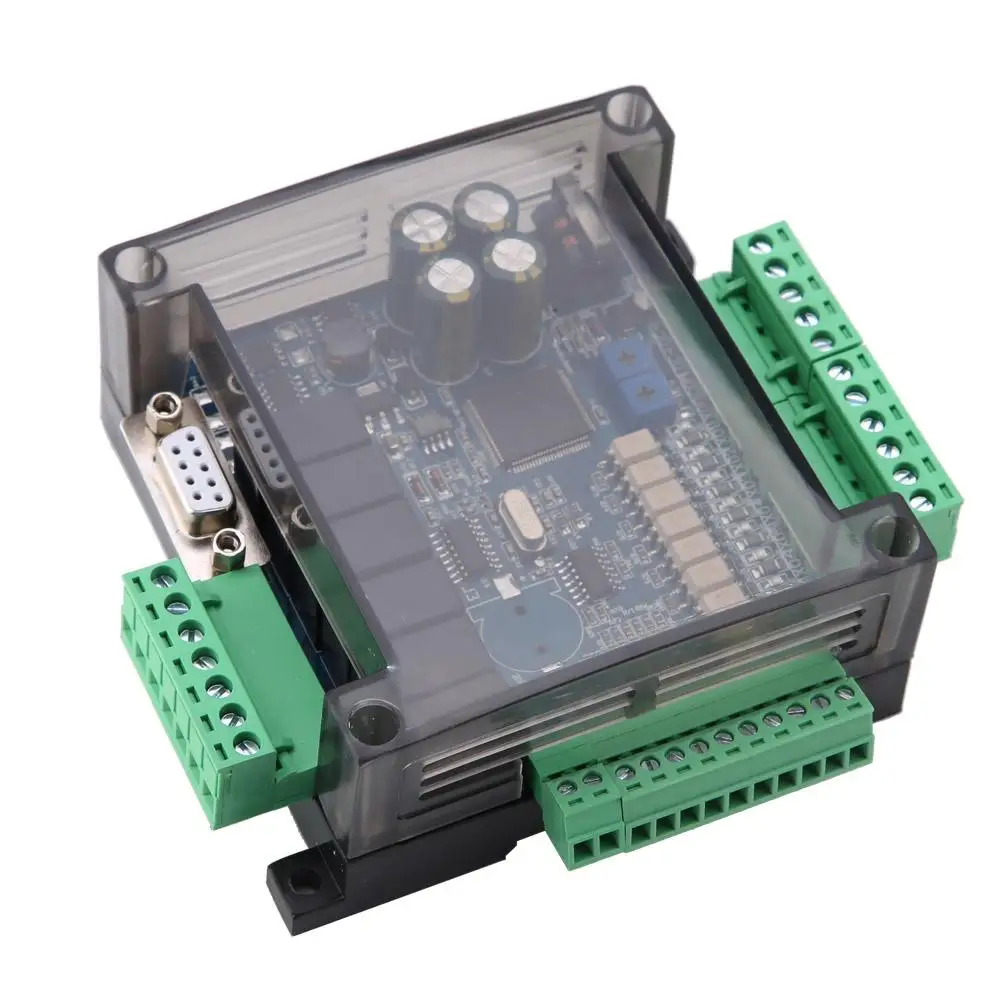

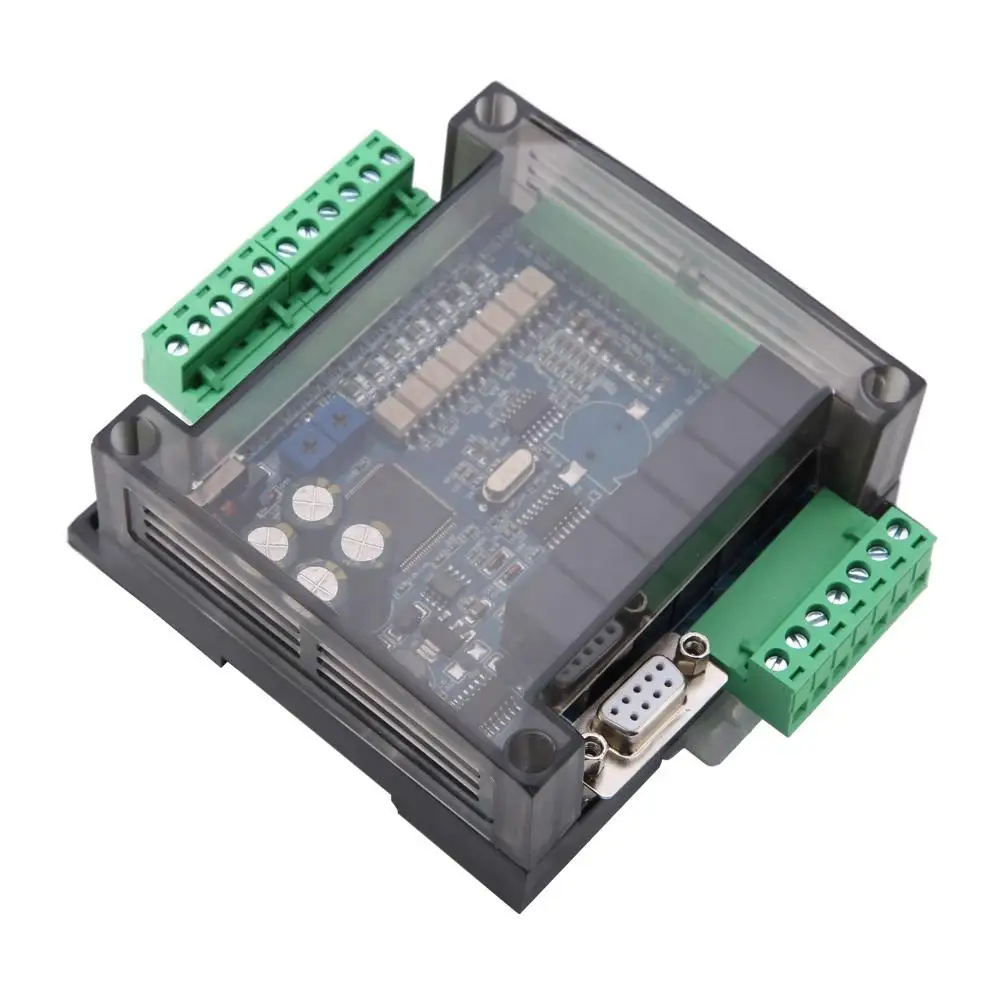

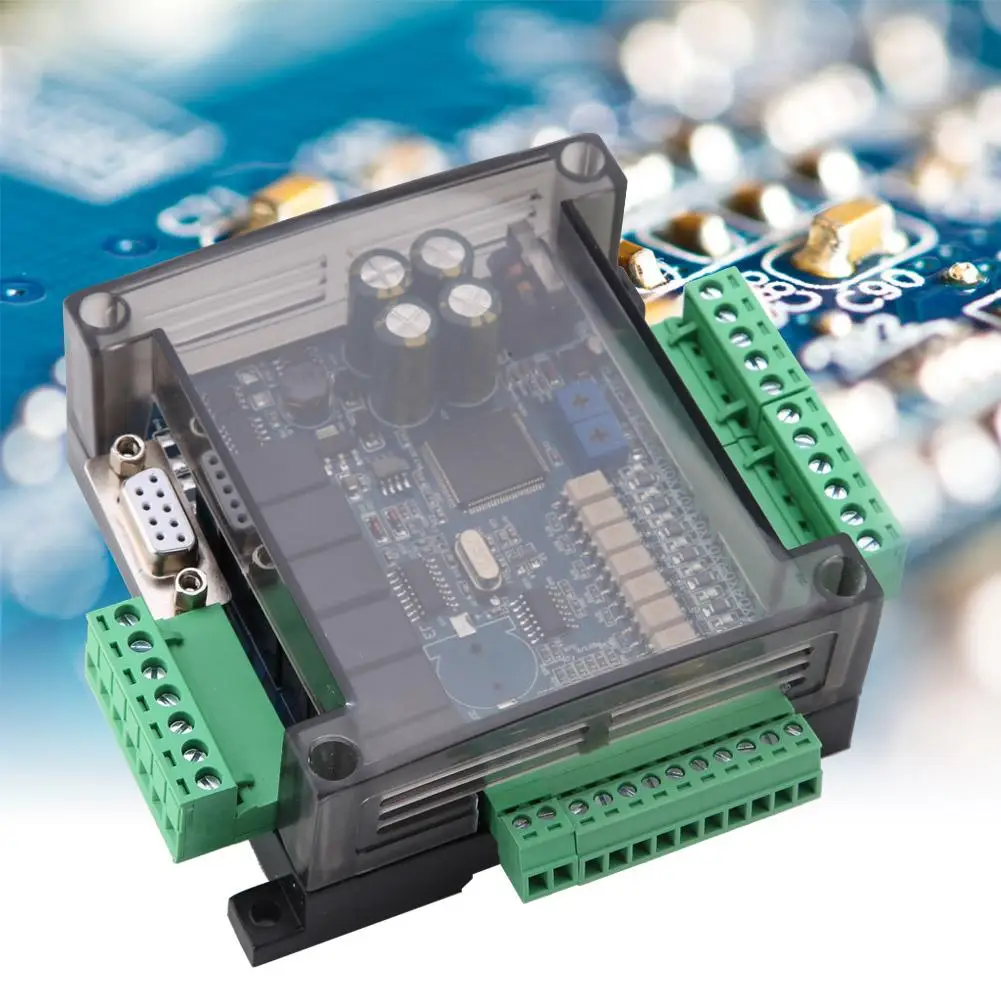

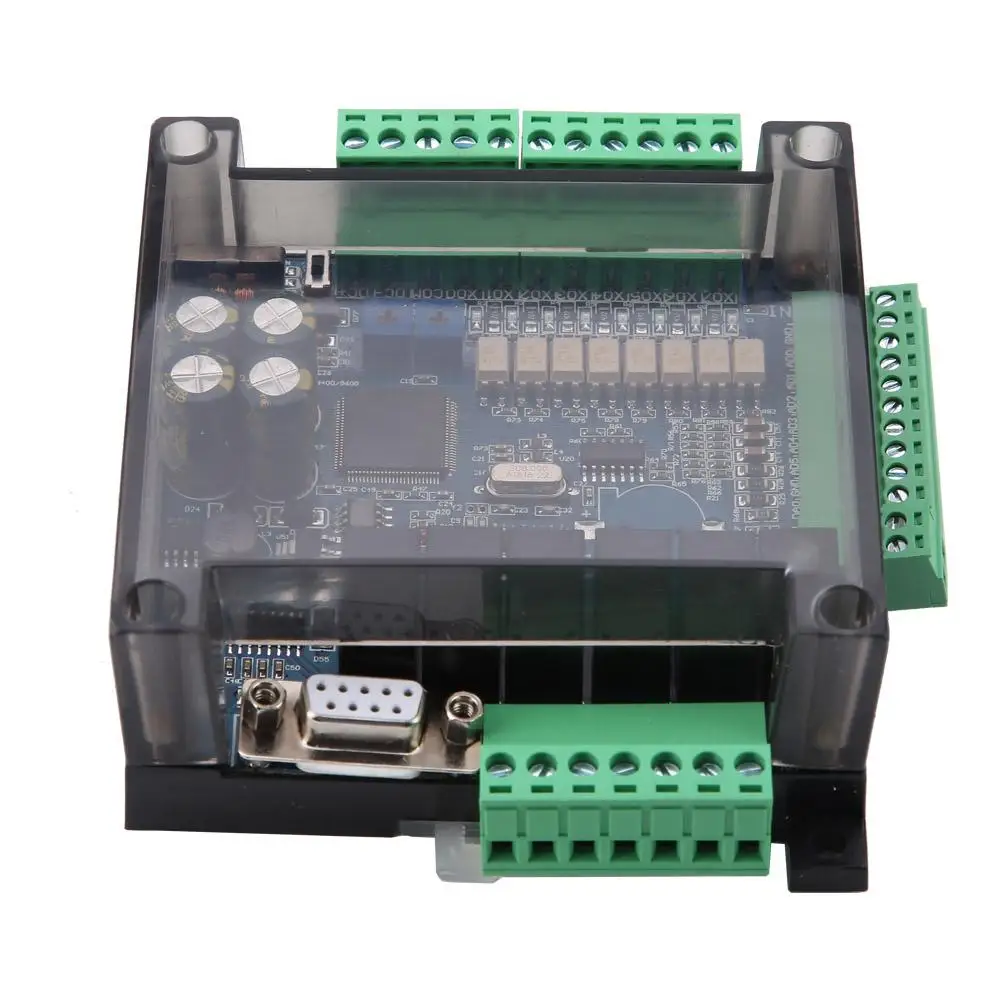

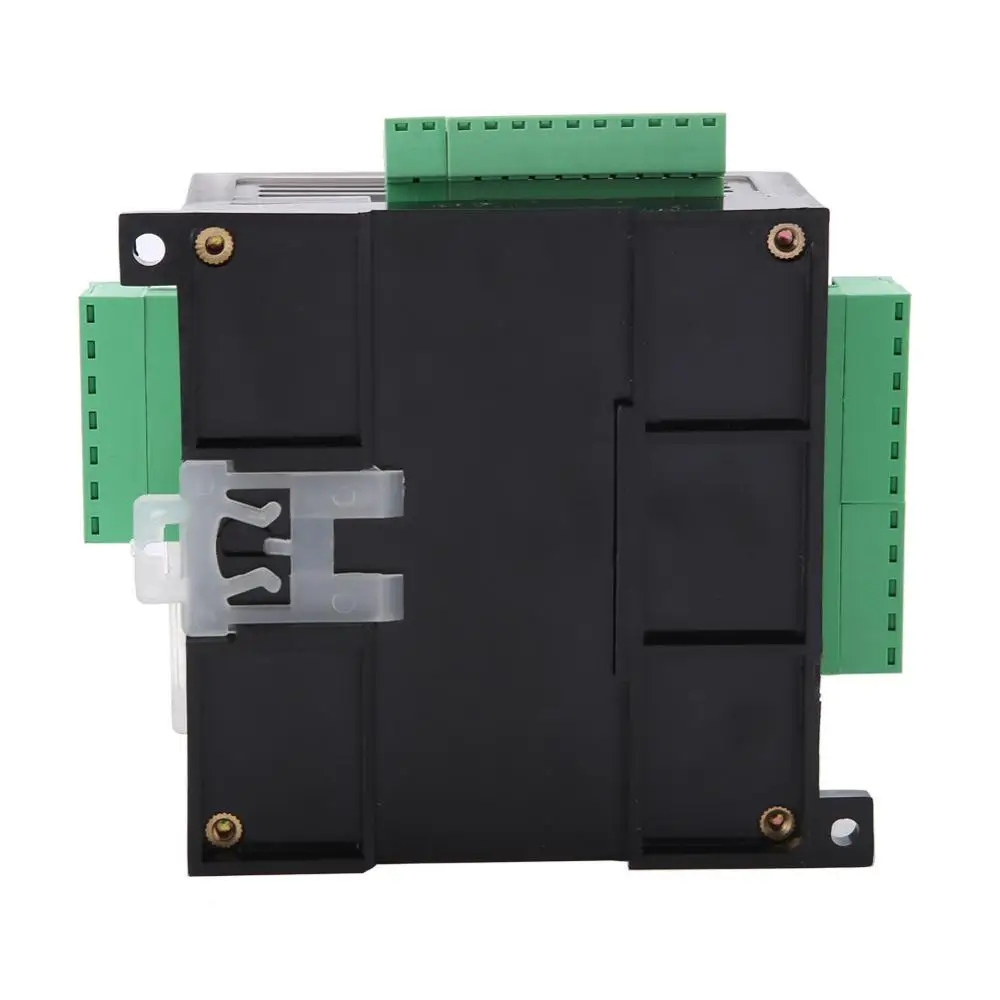

Plc Industrial Control Board Fx3U-14Mr 8 Input 6 Output Programmable Simple Controller
Features:
Input Point X X0-X7, Dc24 Input, Low Level Valid. X0-5 Is The High-Speed Counting Input Port (Default: 12K,100Khz Optional).
Output Analog Voltage Wr3A Instruction, Corresponding To The Value 0-4095.
The Maximum Speed Current Is 1A. External Load Common Terminating + 24, The Other End Received The Plc Output Port Y.
Y0-Y5 Is Optional Relay Or Transistor Output, Relay Output Current 5A. The Transistor Output Dc24V, The Current Maximum 1A.
Intermediate Relay M: M0-M3071, The Power Loss Preservation Range Can Be Set.
Specification:
Weight: 239G/8.4Oz
Input Point:8
Output Point:6
Power Supply Voltage: Dc24V
Output Current: 5A
Analog Input: 6Ad
Analog Output: 2Da
High Speed Count:6 Road 12K Optional 100K
Pulse Output: No
Floating Point: Support
Step Motor: No Support
Memory Capacity:8000 Step
Programming Software: Gx Developer Or Gx Works
Program Steps: 8000 Steps
Two Communication Ports:
One Rs232 (Db9) Serial Communication Port Is Fx3U Protocol 38400,7, E, 1;
One Rs485 (485 Optional Configuration)
