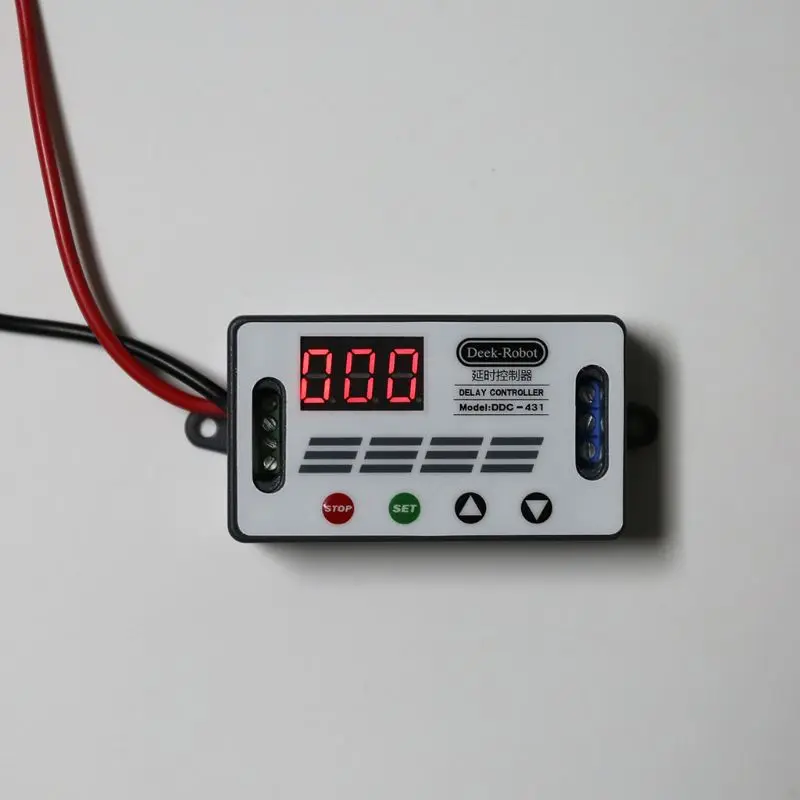

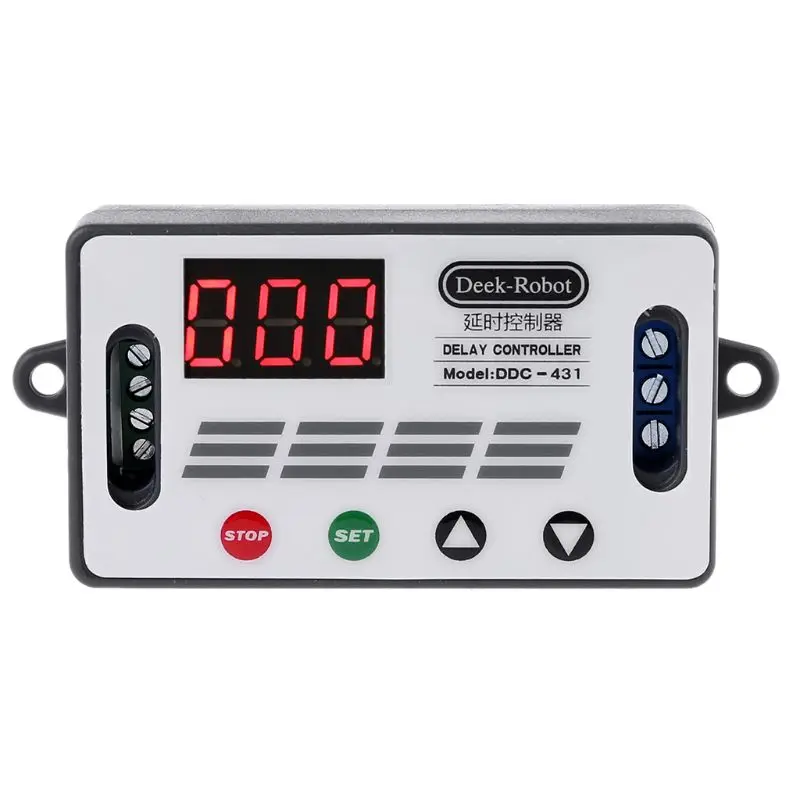

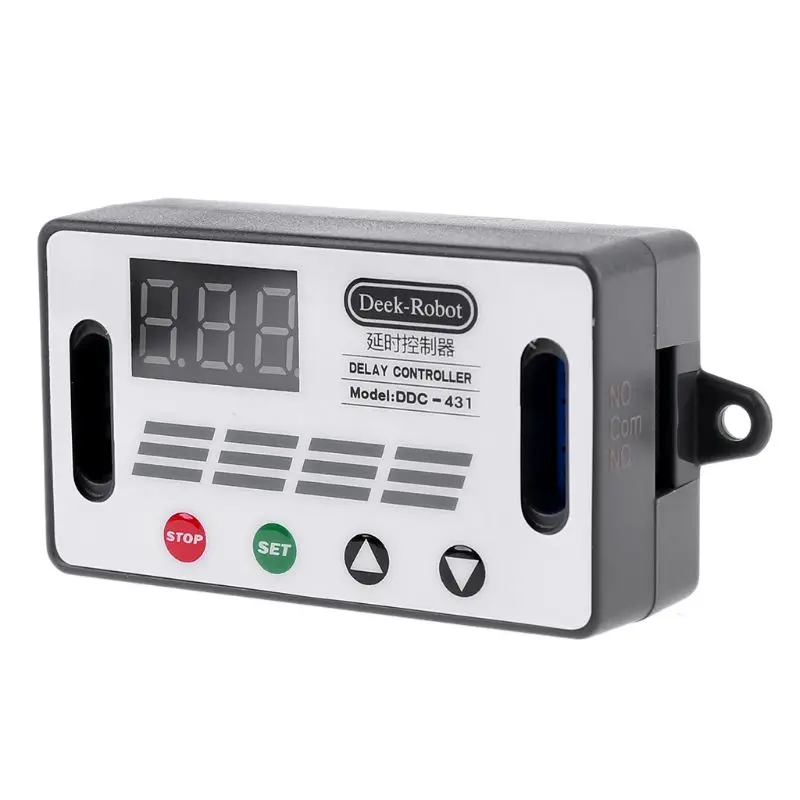

Dc 6V-30V Ddc-431 Timer Delay Relay Switch Digital Dc 12V
Selamat datang di SUPPLY IN,
SUPPLY IN merupakan jasa penyedia barang dengan kategori Tools dan Industri yang berkualitas langsung dari pabrik serta bisa CUSTOM sesuai dengan kebutuhan Anda.
– Item tersedia langsung dari pabrik
– Buka 24 jam cepat merespon
– Hubungi Kami Untuk Menanyakan varian Barang yang tersedia
– Pengiriman cepat 8-15 hari
Barang Tools & Industri dengan berbagai macam Jenis, Bentuk maupun berbagai variasi (silakan bertanya untuk mendapat kebutuhan Anda)
Note Penting: Kami juga bisa menyediakan segala jenis produk, silakan memilih fitur Online Quotation untuk penawaran menarik dari kami.
Selamat Bertransaksi!
Power Source : Dc
Voltage : 12V
Iscustomized : No
Usage : General Purpose
Model Number : M4Yd9Ff100451
Load : Normal
Protect Feature : Normal
Theory : Time Relay
Brand Name : Ootdty
Origin : Mainland
Certification : None
Dc 6V-30V Ddc-431 Timer Delay Relay Switch Digital Dc 12V Data Save Delay Controller M4Yd
Dc 12V Ddc-431 Timer Delay Relay Switch Digital Data Save Delay Controller Dc 6V-30V
– Powerful Function, One-Button Emergency Stop Function (Stop Button), With Reverse Connection Protection, Reverse Connection Without Burning, Power-Off Memory.
– Increased Sleep Mode, After Enabling, No Operation Within 5 Minutes, Automatically Turn Off The Display, Wake Up Any Button!
– You Can Set Different Op, Cl, Lop Parameters, These Parameters Are Independent Of Each Other, Save The Setting Parameters Automatically Power-Down Save And Other Functions, Almost Meet All Needs!
Product Manual:
Working Voltage: Dc6V-Dc30V (Wide Voltage Anti-Connection Protection)
Trigger Signal Source: High-Level Trigger Dc 3.0V24V Signal Ground And System Ground To Improve The System’S Anti-Interference Ability Can Also Short-Circuit The Ground
Output Capacity: Controllable Dc 30V/10A Or Ac 250V/10A Equipment

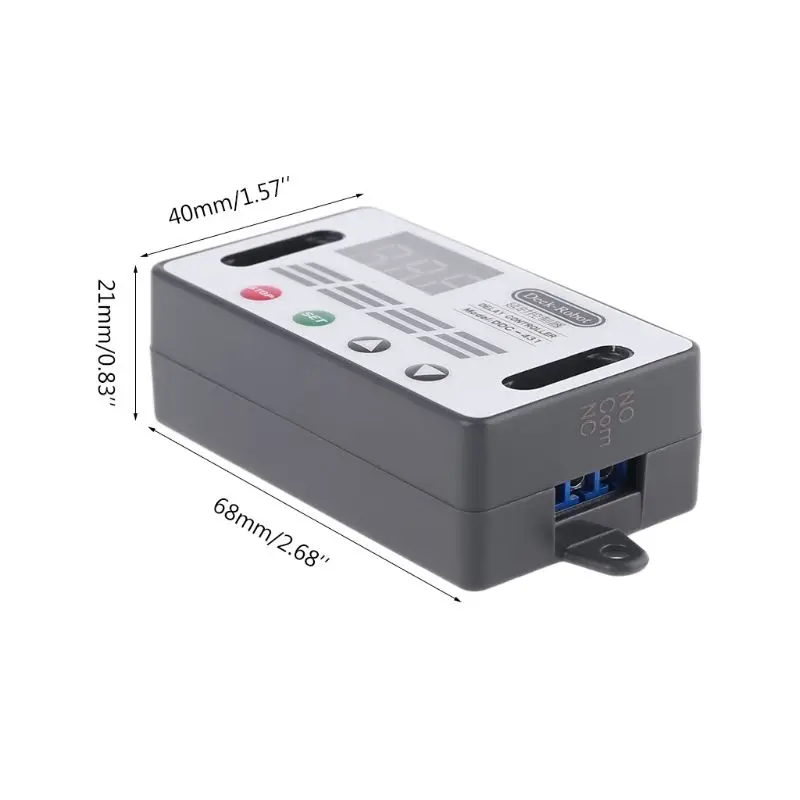

Product Size: 64Mm*35Mm*19.3Mm
Mounting Hole: Diameter 3Mm
Working Temperature: -40 C ~ 85 C
Operating Mode:
P1 Mode: After The Signal Is Triggered, The Relay Turns On The Op Time, Then Turns Off; In The Op Time, The Following Operation
P1.1: The Signal Is Triggered
