Computer On Off Button Remote Control Switch 5V 6V 9V 12V
Selamat datang di SUPPLY IN,
SUPPLY IN merupakan jasa penyedia barang dengan kategori Tools dan Industri yang berkualitas langsung dari pabrik serta bisa CUSTOM sesuai dengan kebutuhan Anda.
– Item tersedia langsung dari pabrik
– Buka 24 jam cepat merespon
– Hubungi Kami Untuk Menanyakan varian Barang yang tersedia
– Pengiriman cepat 8-15 hari
Barang Tools & Industri dengan berbagai macam Jenis, Bentuk maupun berbagai variasi (silakan bertanya untuk mendapat kebutuhan Anda)
Note Penting: Kami juga bisa menyediakan segala jenis produk, silakan memilih fitur Online Quotation untuk penawaran menarik dari kami.
Selamat Bertransaksi!
Current : 10A
Material : Aluminium Alloy
Remote Distance : -110Dbm
Features : Wide Working Voltage
Model Number : Yk-Dc4V-12V+Jslj013
Switch Type : Remote Control
: 1
Certification : Ccc
Brand Name : Yurkuong
Item Type : Switches
Product Description
Working Voltage: Dc4V-12V
(Dc4V 4.2V 4.5V 5V 6V 7.4V 9V 12V) All Is Ok
Quiescent /Standby Current: 7-9Ma
Working Current: 70-130Ma ( If Your Power Supply Is Mini Battery , You Must Care How Long Can It Work For You)
Relay Standard : 20A (( 14Vdc 12A 120Vac 7A)
Max Load: 10A (Have Better Load Less Than 7A)
Size : 34*23*15Mm
Working Frequency: 315Mhz/433.92Mhz Optional
Learning Code: Learning Button To Add Transmitter
Working Mode: Momentary Toggle Latched Adjusted By Learning Button
Momentary—– Press And Hold—On, Release—-Off
Toggle——-Press One Time —-On. Press It Again —-Off
Latched——–Press A —-On, Press B—–Off
(Latched Mode Will Ship With 2 Button Transmitter)
Momentary 5S Time Delay Off—– Press And Hold—On, Release—-5S Lateroff

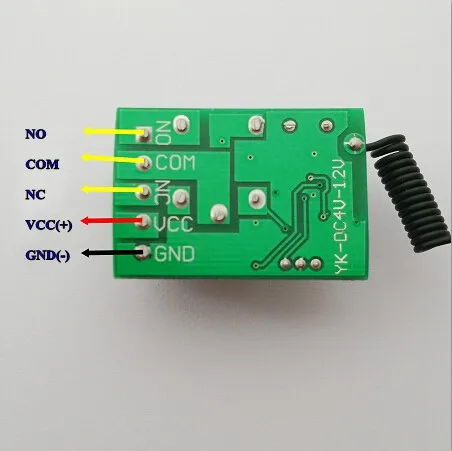

V-
——————-Input Gnd
V+
——————-Input Vcc +
Nc———————Normally Close
Com——————Common
No———————Normally Open
Momentary Toggle Latched Adjusted By Learning Button
Latched ———-Press The Learning Button Until The Receiver Led Indicator Flash For 1 Time Then Release It
Momentary——Press The Learning Button Until The Receiver Led Indicator Flash For 2 Then Release
