8 16 24 32 48Ch Multifunction Rs485 Remote Io Module Plc
Selamat datang di SUPPLY IN,
SUPPLY IN merupakan jasa penyedia barang dengan kategori Tools dan Industri yang berkualitas langsung dari pabrik serta bisa CUSTOM sesuai dengan kebutuhan Anda.
– Item tersedia langsung dari pabrik
– Buka 24 jam cepat merespon
– Hubungi Kami Untuk Menanyakan varian Barang yang tersedia
– Pengiriman cepat 8-15 hari
Barang Tools & Industri dengan berbagai macam Jenis, Bentuk maupun berbagai variasi (silakan bertanya untuk mendapat kebutuhan Anda)
Note Penting: Kami juga bisa menyediakan segala jenis produk, silakan memilih fitur Online Quotation untuk penawaran menarik dari kami.
Selamat Bertransaksi!
Power Source : Dc
Voltage : 12V
Iscustomized : Yes
Usage : General Purpose
Model Number : 23Ioa08
Load : Low Power
Protect Feature : Epoxy
Theory : Solid State Relay
Brand Name : Eletechsup
Origin : Mainland
Certification : None
Product Name: 8 16 24 32 48Ch Multifunction Rs485 Remote Io Module Plc Di-Do Expansion Board Din Rail Box Standard Modbus Rtu Protocol
Package Inlcuded:
1Pcs Dc 9V 12V 24V 8/16/24/32/48Ch Input & 8/16/24/32/48
Ch Output Rs485 Io Module
1 Working Voltage: Dc 6.5-30V (9V 12V 24V)
2 Working Current: 8-50Ma
3 8/16/24/32/48 Optically Isolated Input Ports, Npn Input, 8/32 Channel Version Can Choose Pnp Input
4 8/16/24/32/48 Darlington Transistor Outputs (Uln2803 Npn Output)

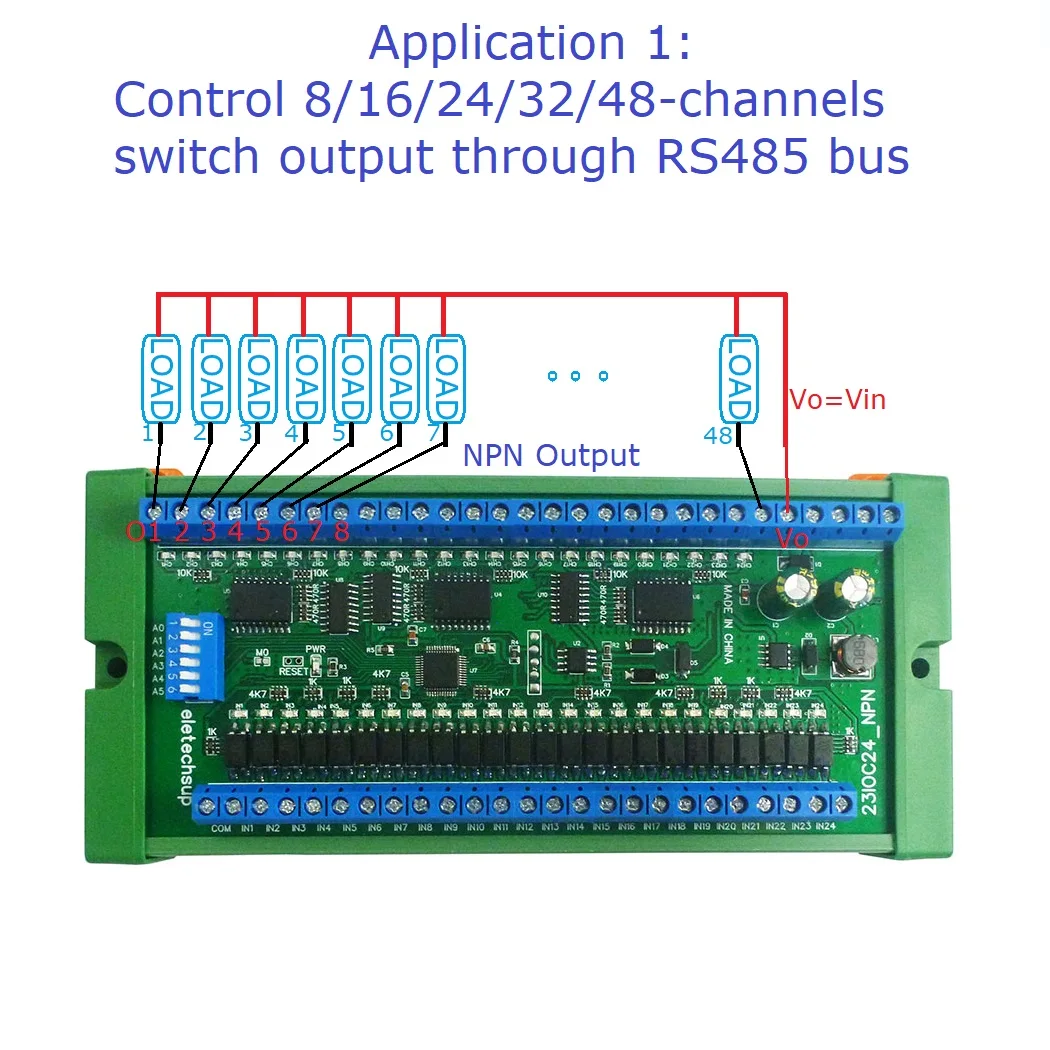

5 The Default Command Has A Variety Of Output Modes: ”Open” ”Close” ”Momentary” ”Self-Locking” ”Interlock” ”Delay” 6 Commands
6 The I
Nput Port Can Remotely Control Output Port Of Another Board Via Rs485 Bus (Relevant Registers Must Be Set)
7 Modbus Command 1 Supports 03 06 16 Function Codes, Modbus Command 2 Supports 01/02/03/05/06/15/16 Function Codes
8 The Maximum Delay Of 1 Modbus Command Is 255 Seconds
9 In Modbus Command Mode, Up To 64 Devices Can Be Used In Parallel
10 The Default Baud Rate Is 9600Bps, You Can Choose The Baud Rate By Jumper:
1200/2400/4800/19200/38400/57600/115200Bps
11 Sizes (With Box): 85X80X30Mm(8Ch),130X80X30Mm(16Ch),173X80X30Mm(24Ch),215X80X30Mm(32Ch),293X80X30Mm(48Ch)
12 Weight (With Box): 97G (8Ch), 148G (16Ch),
