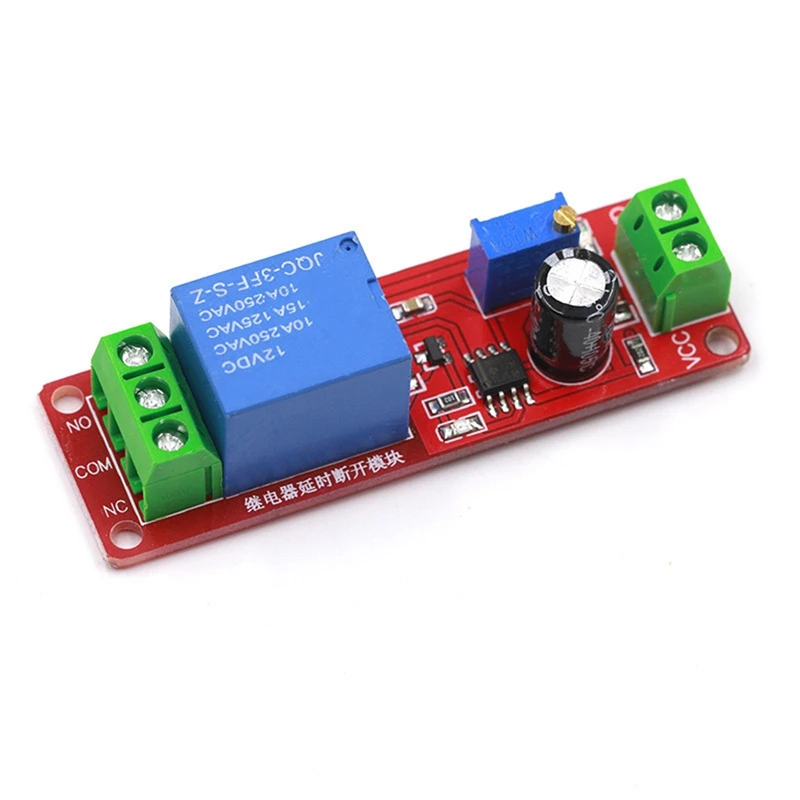

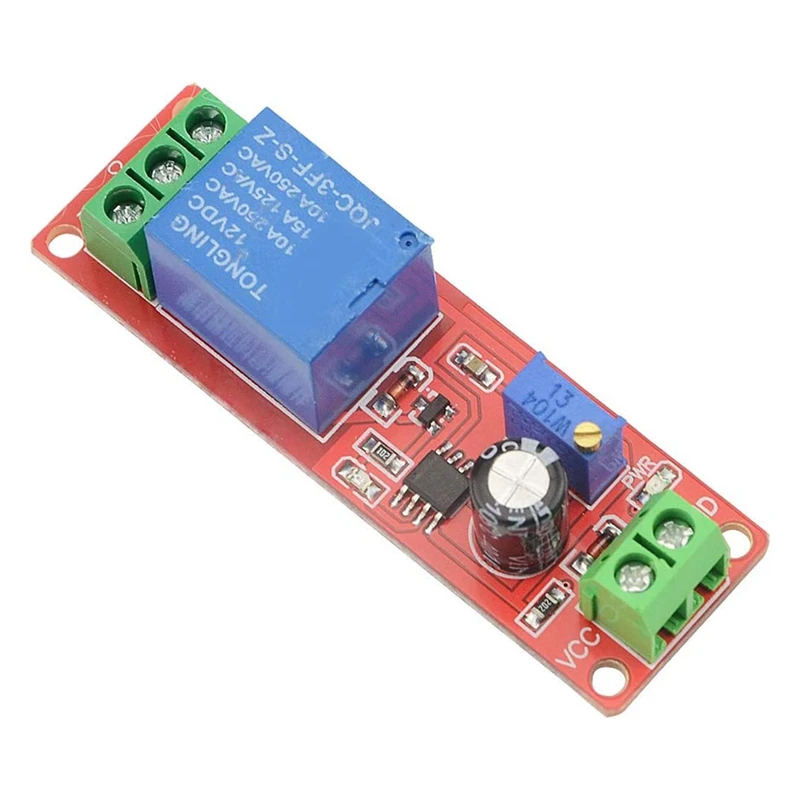

5Pcs Ne555 Dk555 Timer Switch Adjustable Disconnect Module
Selamat datang di SUPPLY IN,

SUPPLY IN merupakan jasa penyedia barang dengan kategori Tools dan Industri yang berkualitas langsung dari pabrik serta bisa CUSTOM sesuai dengan kebutuhan Anda.

– Item tersedia langsung dari pabrik
– Buka 24 jam cepat merespon
– Hubungi Kami Untuk Menanyakan varian Barang yang tersedia
– Pengiriman cepat 8-15 hari

Barang Tools & Industri dengan berbagai macam Jenis, Bentuk maupun berbagai variasi (silakan bertanya untuk mendapat kebutuhan Anda)

Note Penting: Kami juga bisa menyediakan segala jenis produk, silakan memilih fitur Online Quotation untuk penawaran menarik dari kami.

Selamat Bertransaksi!
Certification : None
Origin : Mainland

Support Drop And Wholesaling.

100% Original And With Free After-Sale .

The Relay Time Delay And Power Supply Is Connected.Specific As Follows: For 12 V Power Supply To The Relay, Relay Not Immediately And Absorption, Relay The Output Status To: Normally Open And Public Disconnect, Normally Closed And Public Conduction;Wait For Delay 1-10 S (Adjustable), Relay And Absorption, At This Point, The Relay Outputs Status To: Normally Open And Public Conduction, Normally Closed And Public Disconnected;As Long As The Module Power Continuously, This State Will Remain.
The Delay Time Is Adjustable, (0 ~ 10 Seconds)
Ikncreasing The Potentiometer Can Increase The Delay Time
The Capacitor C1 Can Increase Delay Time
With Input Power Light

A Relay And Indicator Lights
Controlled Ac 220 V / 10 A Device.(Maximum Control Equipment 2000 W)
Stream With Relay Protection.
The Delay Time Formula: T 1.1 Rc.For Example: 100 Uf Capacitance Resistance 100 K T 1.1 * 100000 * 0.0001 11 Seconds
The On-Board Equipment On The Time Delay, Prevent Excessive Current When The Car Lighter Burned On-Board Equipment.
Need To Have Order To Start The Occasion, To Prevent Multiple Devices At The Same Time Starting Current Is Too Large Burning Appliances.
The Main Chip: Ne555
Working Voltage: Dc12V
Colour:Red+Green+Blue
Material:Pc, Metal

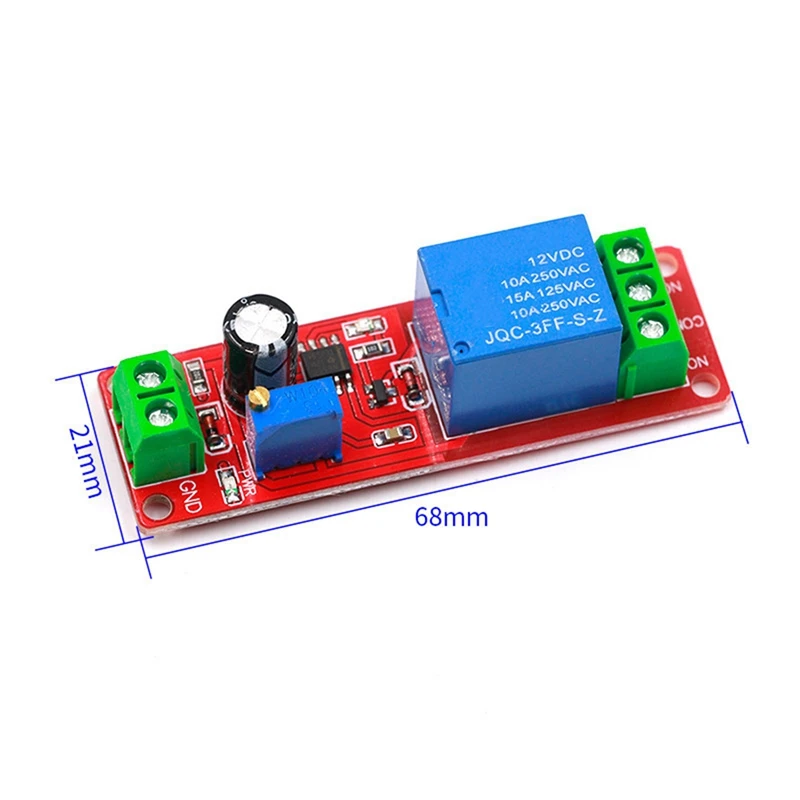

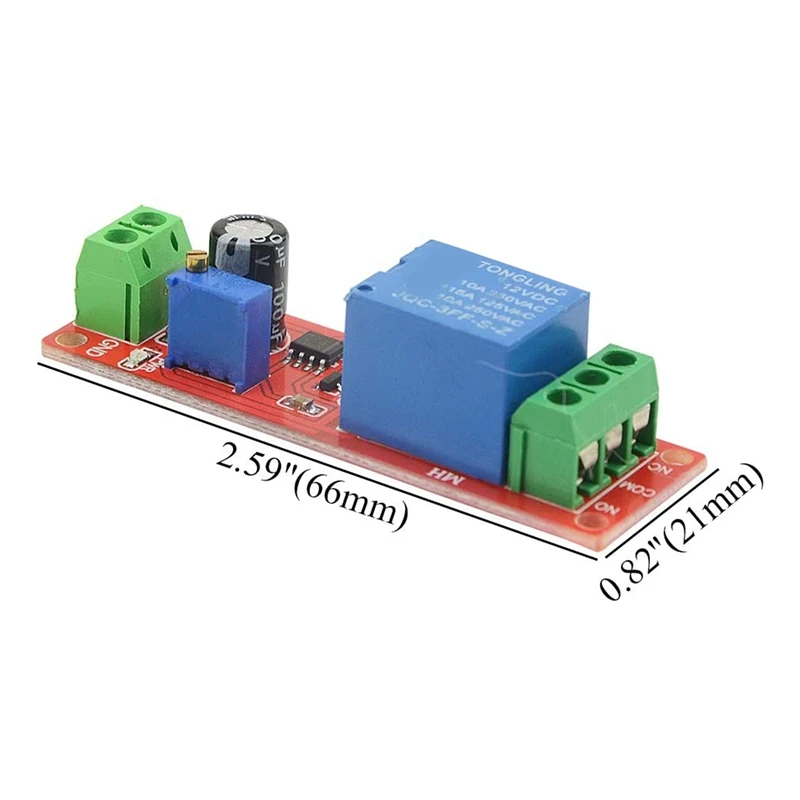

Size: 6.8 X 2.1Cm

Package Contents:

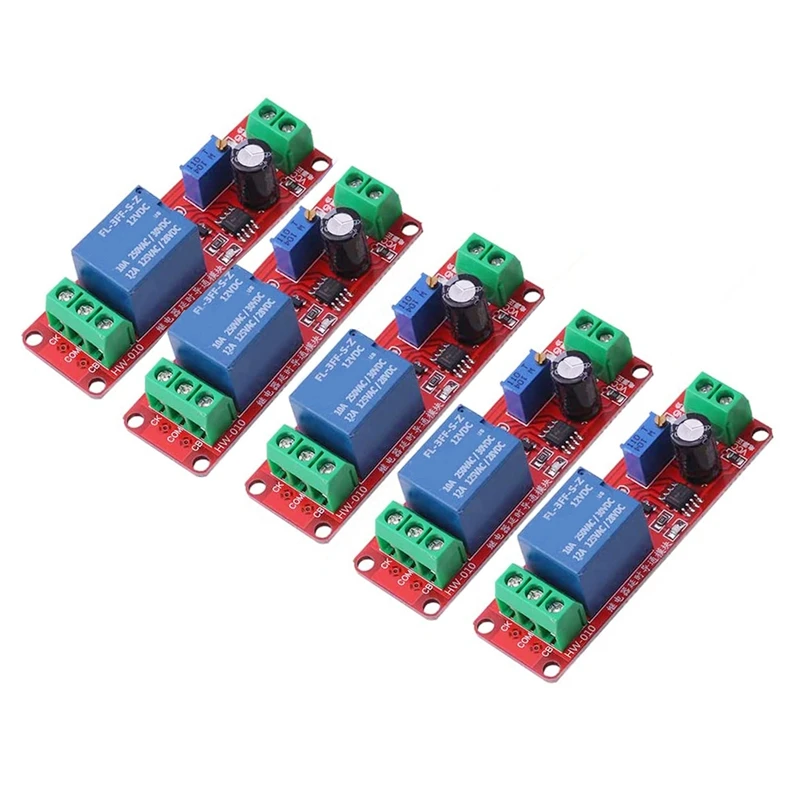

5 X Ne555 Delay Relay Shield Timer

Only The Above Package Content, Other Products Are Not
