3A 4 Channels Multiple Switching Power Supply Module 3.3V
Selamat datang di SUPPLY IN,
SUPPLY IN merupakan jasa penyedia barang dengan kategori Tools dan Industri yang berkualitas langsung dari pabrik serta bisa CUSTOM sesuai dengan kebutuhan Anda.
– Item tersedia langsung dari pabrik
– Buka 24 jam cepat merespon
– Hubungi Kami Untuk Menanyakan varian Barang yang tersedia
– Pengiriman cepat 8-15 hari
Barang Tools & Industri dengan berbagai macam Jenis, Bentuk maupun berbagai variasi (silakan bertanya untuk mendapat kebutuhan Anda)
Note Penting: Kami juga bisa menyediakan segala jenis produk, silakan memilih fitur Online Quotation untuk penawaran menarik dari kami.
Selamat Bertransaksi!
Iscustomized : Yes
Output Current : 3A
Output Frequency : 150Khz
Model Number : 350W 24V Switching Power Supply
Output Type : Single
Output Power : 1 – 50W
Brand Name : Aideepen
Origin : Mainland
Certification : None
Size : 88 X 55 X 15Mm

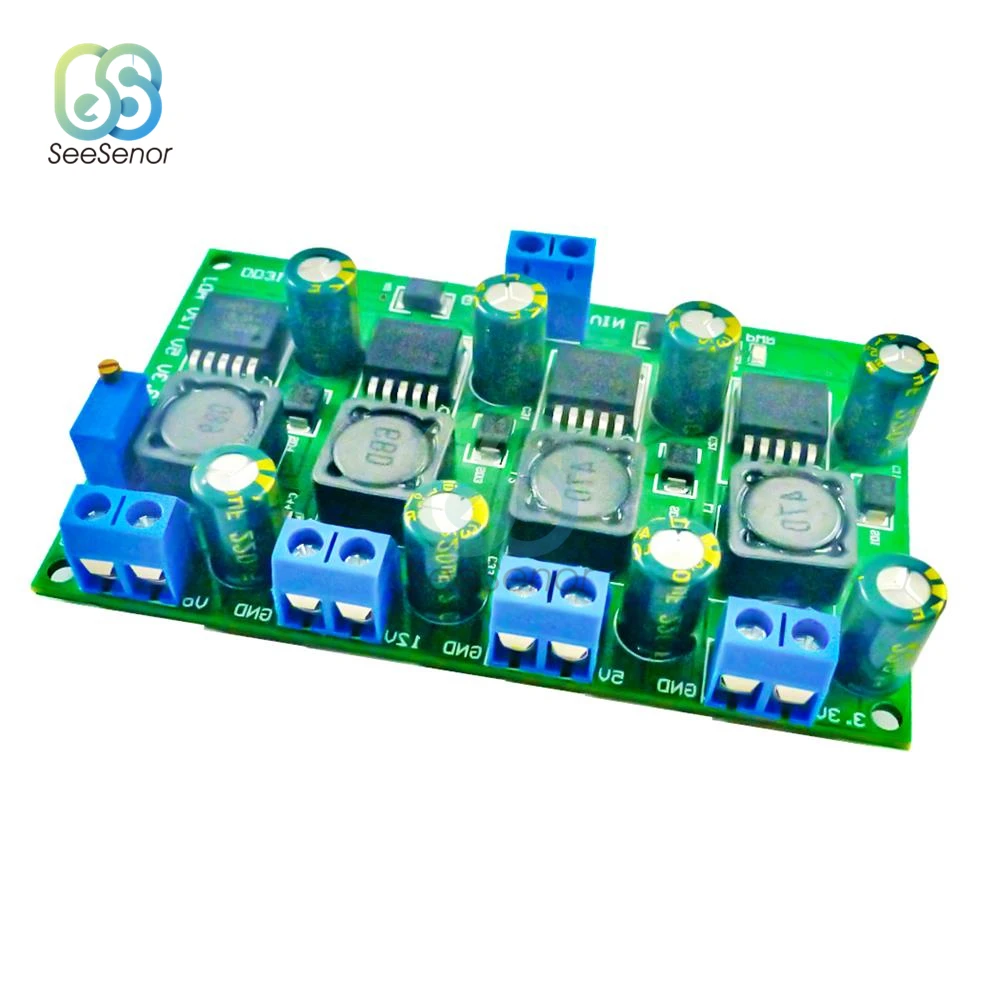

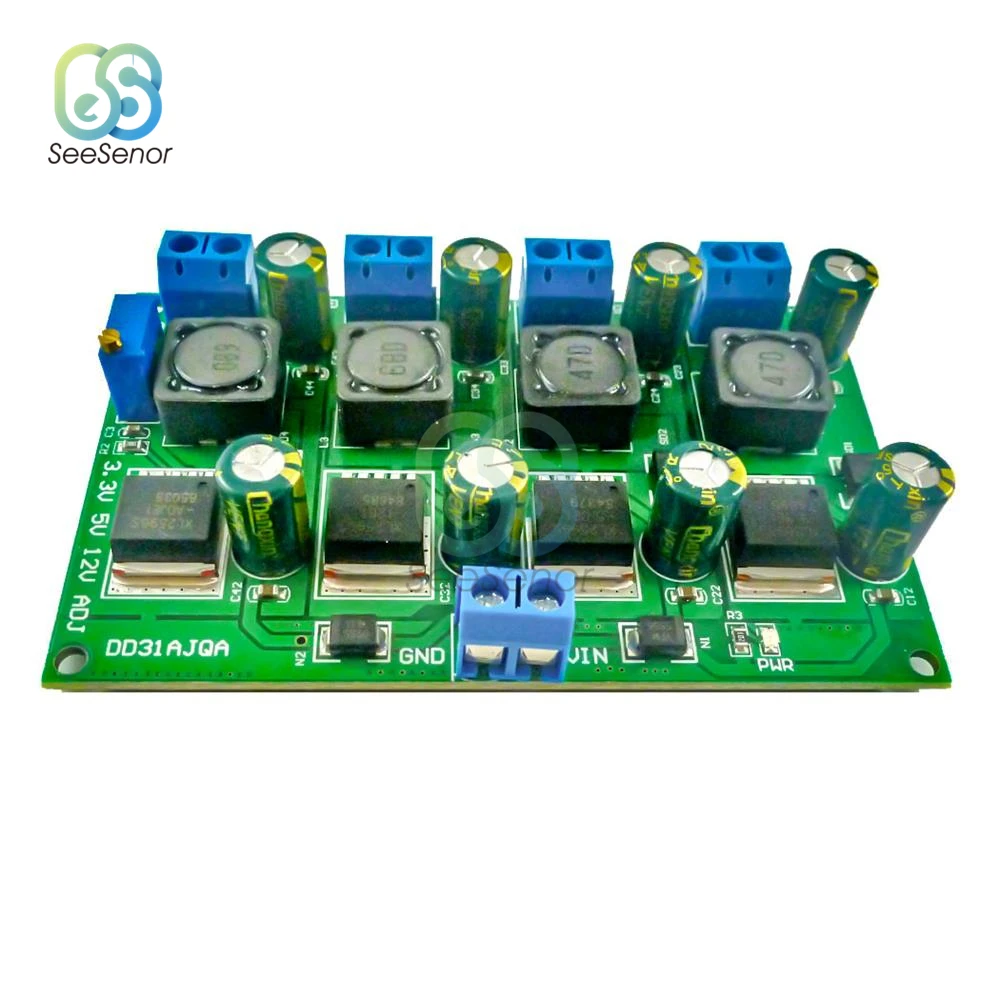

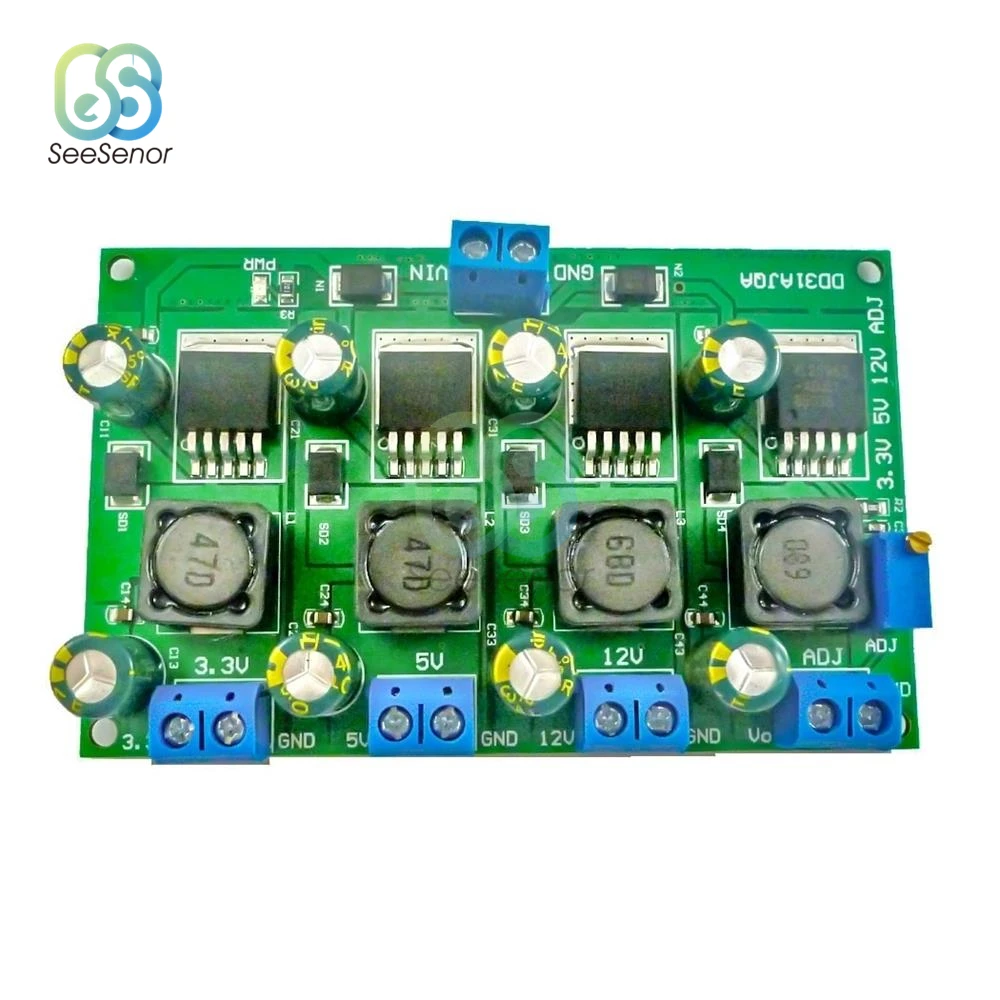

4-Channel Step-Down Buck Dc-Dc Converter Power Module

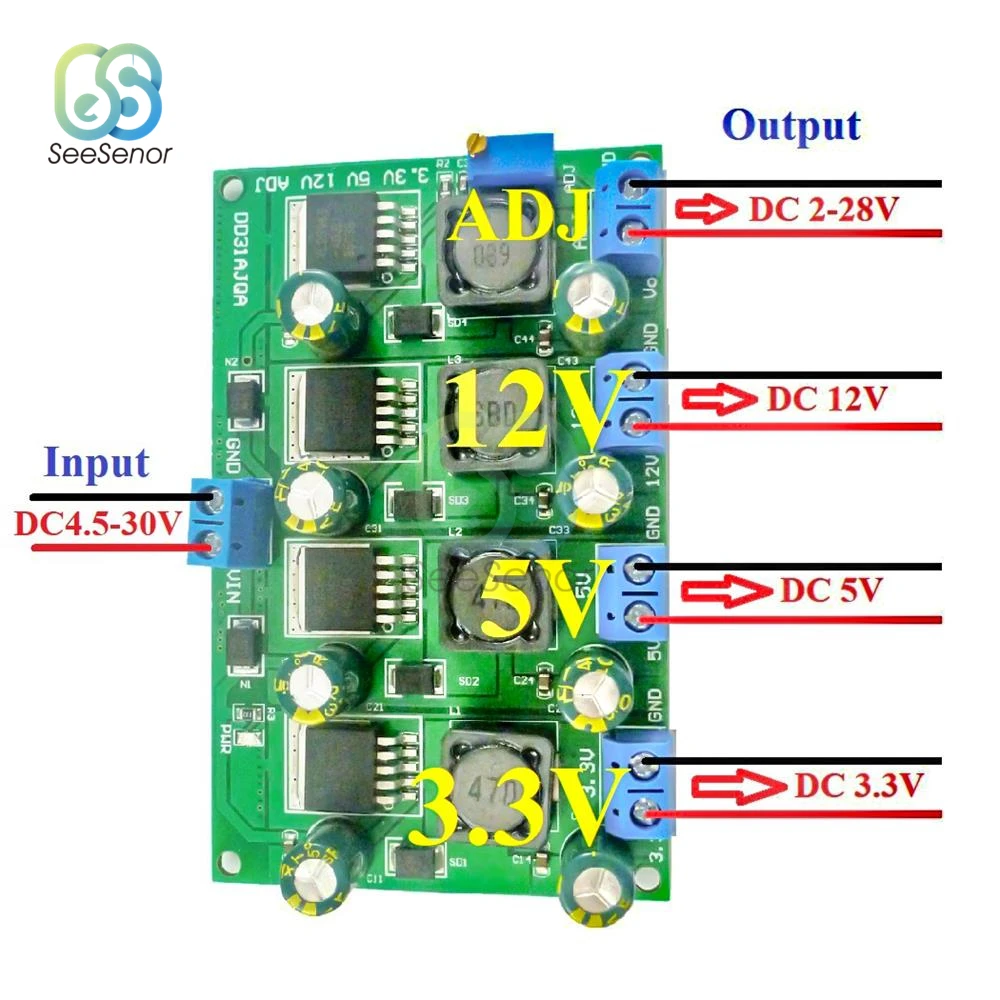

3.3V Output: Input 4.5-30V, Output 3.3V (3%)
5V Output : Input 6.5-30V, Output 5V (3%)
12V Output : Input 13.5-30V, Output 12V (3%)
Ajd Output : Input 4.5-30V, Adjustable Output 2-28V
Maximum Output Current Per Channel : 3A;
Overall Maximum Load Power: 50 Watts
Master Chip : Xl2596(Compatible Lm2596)
Working Frequency 150Khz.
Input Reverse Connection Protection
Built In Thermal Shutdown Function,Built In Current Limit Function,Built In Second Current Limit Function
Operating Temperature :40C To +85C
Storage Temperature : 65C To +150C

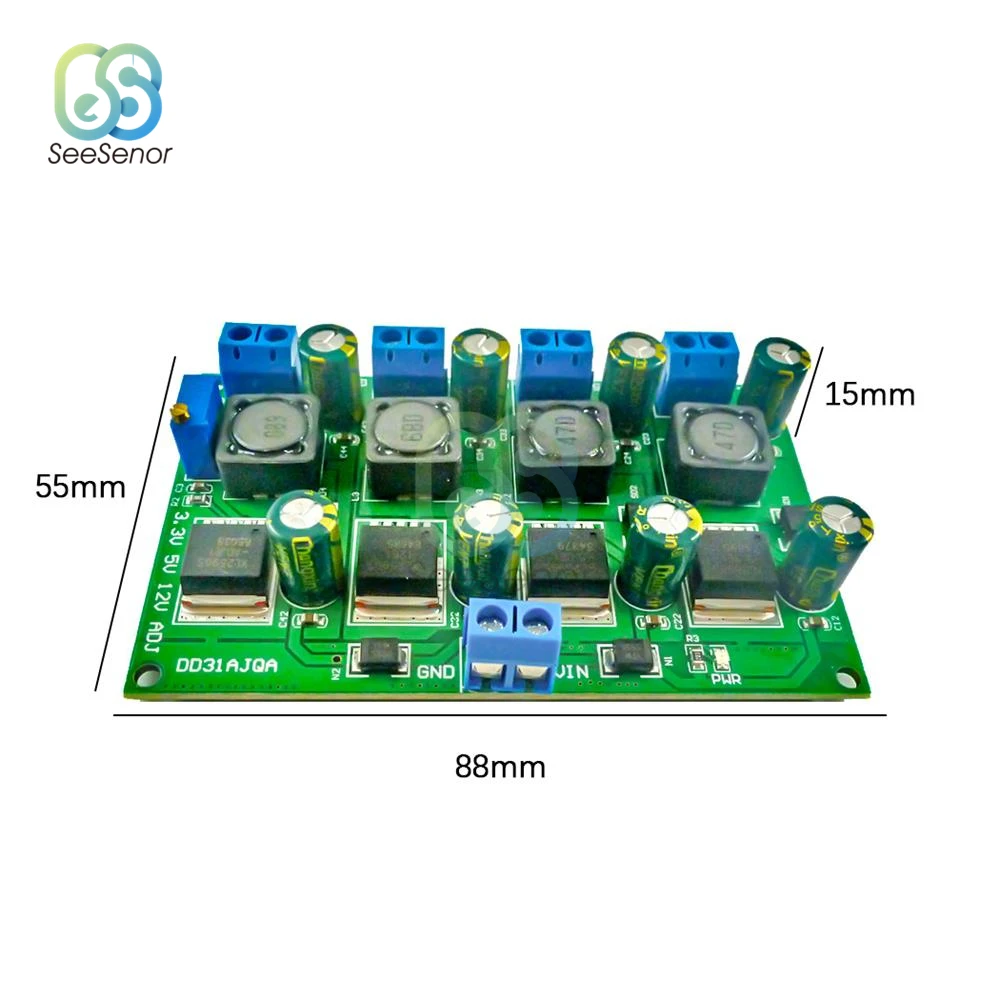

Size : 88 X 55 X 15Mm
Weight : 57G
Attention:
This Is A Dc-Dc Voltage Converter Module,Must Be Noted When Using:
1 Input Voltage Can Not Be Greater Than The Maximum Input Range
2 Output Power Can Not Be Greater Than The Maximum Load For A Long Time
3 Input Power Must Be Greater Than The Output Power, Because The Power Consumption Of The Module Itself
Applications:
Mcu Arm Stm32 Cpu Fpga/Cpld Uno Mega3560
Ptz Cctv Ip Camera
Smart Home / Home Automation
Wifi Router Switch Network Equipment
Led Motor
Battery Powered Equipment
Wireless Module:Nrf24L01 Cc1101 Cc2500 Cc2530
