32A 60A 380V 3P+N Din Rail Self Recovery Re Automatic
Selamat datang di SUPPLY IN,
SUPPLY IN merupakan jasa penyedia barang dengan kategori Tools dan Industri yang berkualitas langsung dari pabrik serta bisa CUSTOM sesuai dengan kebutuhan Anda.
– Item tersedia langsung dari pabrik
– Buka 24 jam cepat merespon
– Hubungi Kami Untuk Menanyakan varian Barang yang tersedia
– Pengiriman cepat 8-15 hari
Barang Tools & Industri dengan berbagai macam Jenis, Bentuk maupun berbagai variasi (silakan bertanya untuk mendapat kebutuhan Anda)
Note Penting: Kami juga bisa menyediakan segala jenis produk, silakan memilih fitur Online Quotation untuk penawaran menarik dari kami.
Selamat Bertransaksi!
Type : Moulded Case
Brand Name : Earueletric
Noted: When You First Connect The Product, You Have To Wait About 1 Minute, After The Red Light Turn Off, Then The Product Will Work.

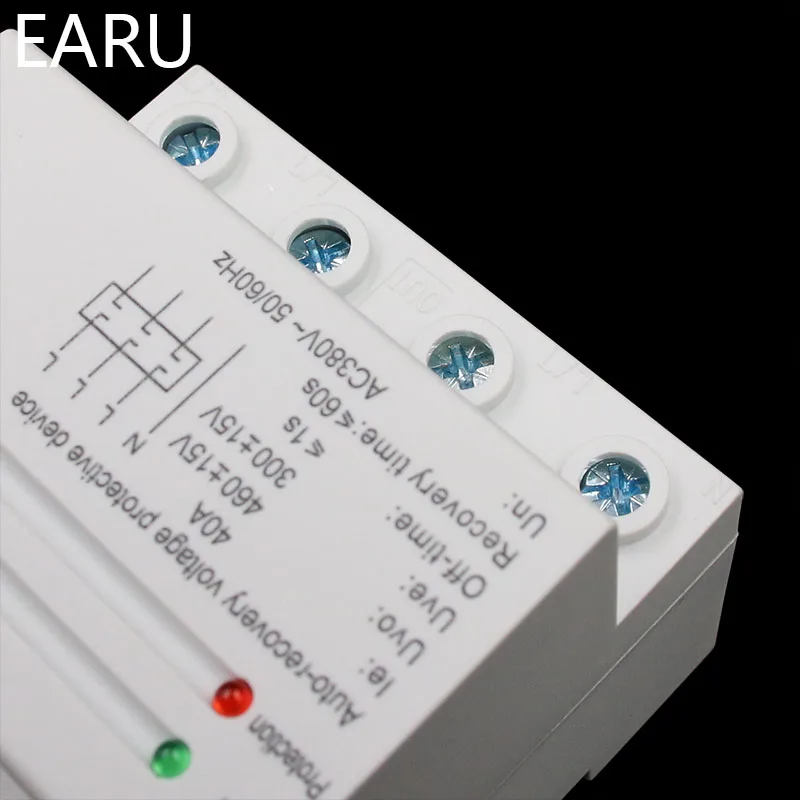

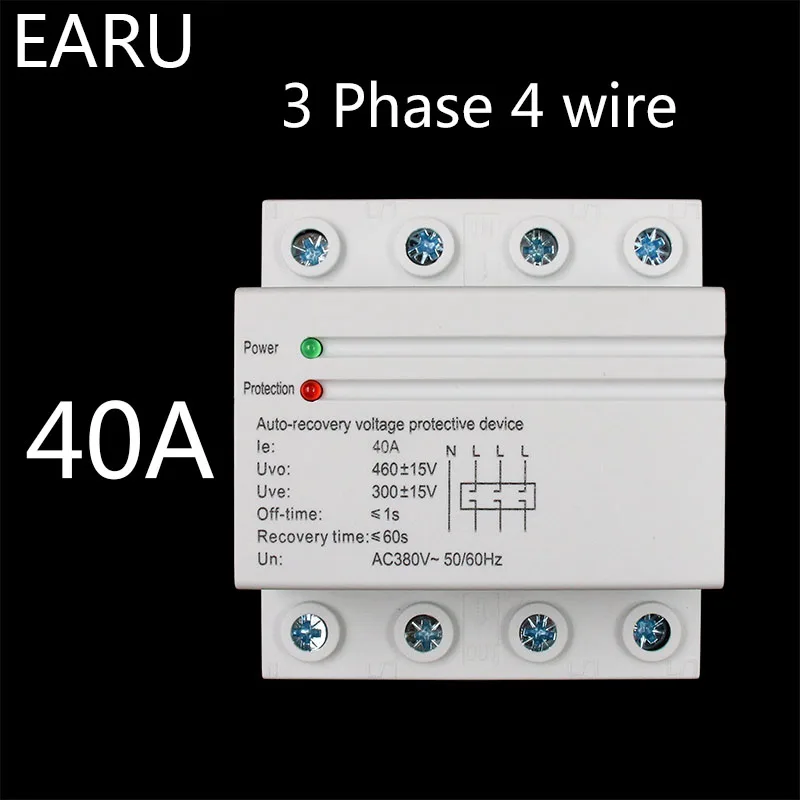

The Automatic Recovery Over Voltage And Under Voltage Protective Device Complies With Modular Design Standards. The Circuit Boards Of Products Adopt Good Quality Electronic Components With Reliable Performance. When The Power Situation Is Unstable. It’S Protection Function Will Be Automatically Activated. Once The Voltage Exceeds The Limited Range Of Products, It Will Automatically Cut Off So As To Protect The Safely Of Electrical Equipment And Persons. The Device Will Re-Supply After 1 Minute, When The Power Returns To Normal. The Green Indicator Display, When The Power Is Normal Supply. The Red Indicator Display, When The Power Over Voltage Or Under Voltage. Installing: 35Mm Din Rail.
Main Technical Speacification 40A
1. Rated Ac Voltage 380V10% And Frequency 50Hz/60Hz 2. Passing Max Current: 40A 3. Max. Loading Power: 17Kva 4. Over-Voltage Action Cut-Off Value: 460Vac+/-15V 5. Normal-Voltage Value: 300-460Vac 6. Under-Voltage Action Cut-Off Value:
Main Technical Speacification 60A
1. Rated Ac Voltage 380V10% And Frequency 50Hz/60Hz 2. Passing Max Current: 60A 3. Max. Loading Power: 24Kva 4. Over-Voltage Action Cut-Off Value: 460Vac+/-15V 5. Normal-Voltage Value: 300-460Vac 6. Under-Voltage Action Cut-Off
