24 Ghz Microwave Modu Radar Modu Radar Antenna Sensor Doppr Sss
Kami Menyediakan Berbagai Macam Barang Berkualitas
– Item Selalu Tersedia
– Pengiriman Pat
– Hub Kami Untuk Menanyakan Varian Barang
Diy Supplies : Ectrical
Modnameckeditor
Summary
Cl-1001
It’S A High Gain?Narrow-Beam24Ghzradar Velocity Measuring Modu?Achieving Velocity Measurement By Doppr Effect?Accuracy Of Velocity Measurement Is Achievab1Km/H?It Can Be Applied To Traffic Speed Radar And Intellint Street Light Induction..
Parameter Indicators
Frequency Ran?24.125Ghz+-125Mhz
Detection Ran?Sports Vehics?Cart150Meter Car100Meter?
Supportrs232Withrs485Interfa?Baud Rate9600Bps)
Velocity Ran1KmH??300KmH
Velocity Measurement Error Is Not Greater Than Or Equal To+ -1KmH(When The Ang Between Moving Direction And Radar Beam Azimuth Is Zero?
Volta?9-24V?Ectric Current?220Ma12V
Radiation Power?Eirp??22Dbm
Antenna Ang?26?X13?

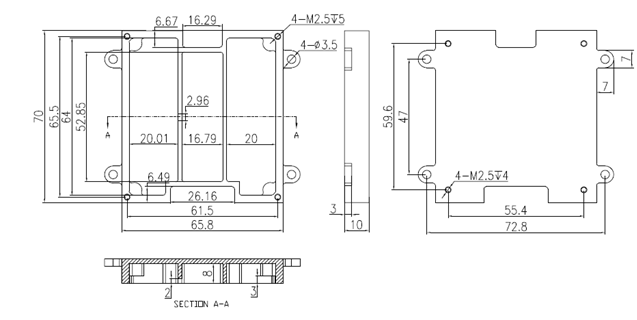

Sensor Size?77*66*10Mm
Performan Index
Tx & Rx
Antenna Pattern
Communication Protocol Description
Rs232
Speed Data Output Format?Baud Rate9600Bpspacket Per Frame9Byte?
1
?Goals To Come
V
?Asci??? Ascii?Hundred? Ascii?Ten?Ascii?Personality?Ascii?Decimal Point?Ascii?Decimal Digits? Ascii?0X0D0D0A
2
?Goal Tart
V
?Ascii???Ascii?Hundred?Ascii?Ten?Ascii?Personality?Ascii?Decimal Point?Ascii?Decimal Digits?Ascii?0X0D0D0A
Rs485
Speed Data Output Format?Baud Rate9600Bp5Packet Per Frame4Byte?
Tart Velocity Data?0Xfc0 Xfa Sum0X00
Going Tart Velocity Data?0Xfb Oxfd Sum0X00
Notes1?Sumfor Velocity Data Ran0X01?0Xf0?Corresponding Velocity Ran1Km?H?240Km?H?
Radar Parameter Setting Command?Only Throughrs232Set Up?Baud Rate9600Bps?
Commanda?0X430X460X01 Aacc
