1Pc 2P 63A 220V Din Rail Self Recovery Automatic Reconnect
Selamat datang di SUPPLY IN,
SUPPLY IN merupakan jasa penyedia barang dengan kategori Tools dan Industri yang berkualitas langsung dari pabrik serta bisa CUSTOM sesuai dengan kebutuhan Anda.
– Item tersedia langsung dari pabrik
– Buka 24 jam cepat merespon
– Hubungi Kami Untuk Menanyakan varian Barang yang tersedia
– Pengiriman cepat 8-15 hari
Barang Tools & Industri dengan berbagai macam Jenis, Bentuk maupun berbagai variasi (silakan bertanya untuk mendapat kebutuhan Anda)
Note Penting: Kami juga bisa menyediakan segala jenis produk, silakan memilih fitur Online Quotation untuk penawaran menarik dari kami.
Selamat Bertransaksi!
Iscustomized : Yes
Model Number : Ea-Ou63
Type : Mini
Brand Name : Elesavee
Origin : Mainland
Certification : None
Max Passing Current : 63A
Mount Way : Din Rail
Origin : Zhejiang Wenzhou

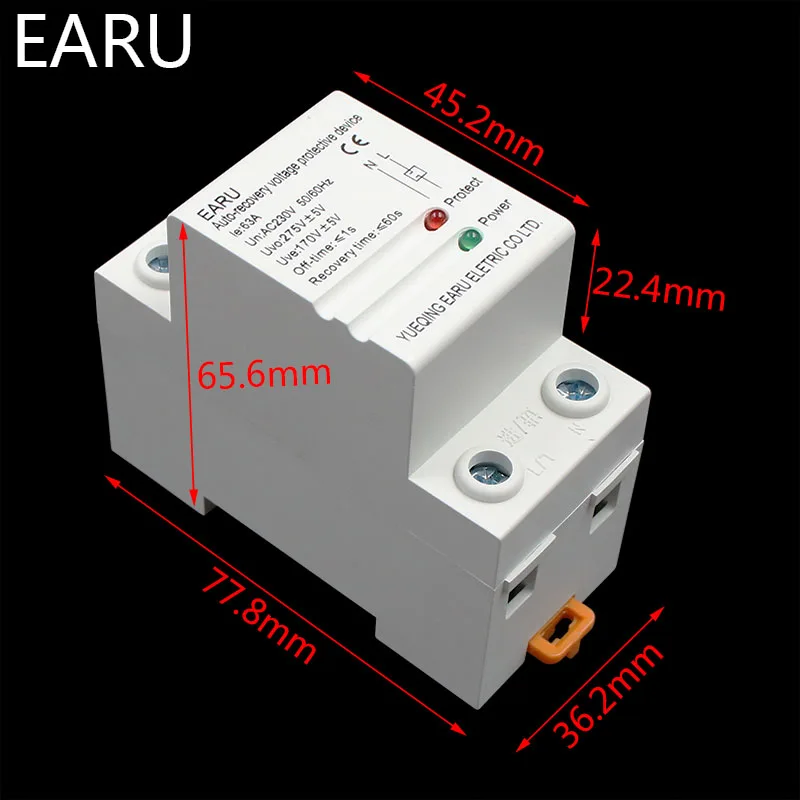

Size : 36L*77W*78Hmm
Rated Voltage : Ac220-230V
Unit Type : Piece
Package Weight : 0.160Kg (0.35Lb.)
Package Size : 1Cm X 1Cm X 1Cm (0.39In X 0.39In X 0.39In)
1 Pc 63A 220V Din Rail Self Recovery Automatic Reconnect Over & Under Voltage Lightening Protection Protective Protector Relay
The Automatic Recovery Over Voltage And Under Voltage Protective Device Complies With Modular Design Standards. The Circuit Boards Of Products Adopt Good Quality Electronic Components With Reliable Performance. When The Power Situation Is Unstable. It\’S Protection Function Will Be Automatically Activated. Once The Voltage Exceeds The Limited Range Of Products, It Will Automatically Cut Off So As To Protect The Safely Of Electrical Equipment And Persons. The Device Will Re-Supply In 1 Minute, When The Power Returns To Normal.

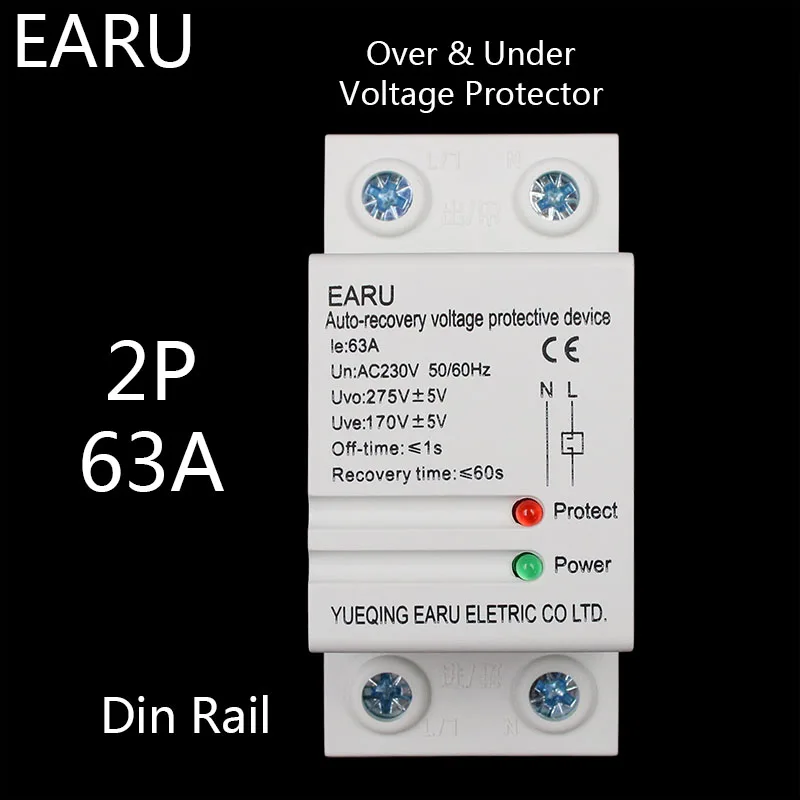

The Green Indicator Display, When The Power Is Normal Supply.
The Red Indicator Display, When The Power Over Voltage Or Under Voltage.

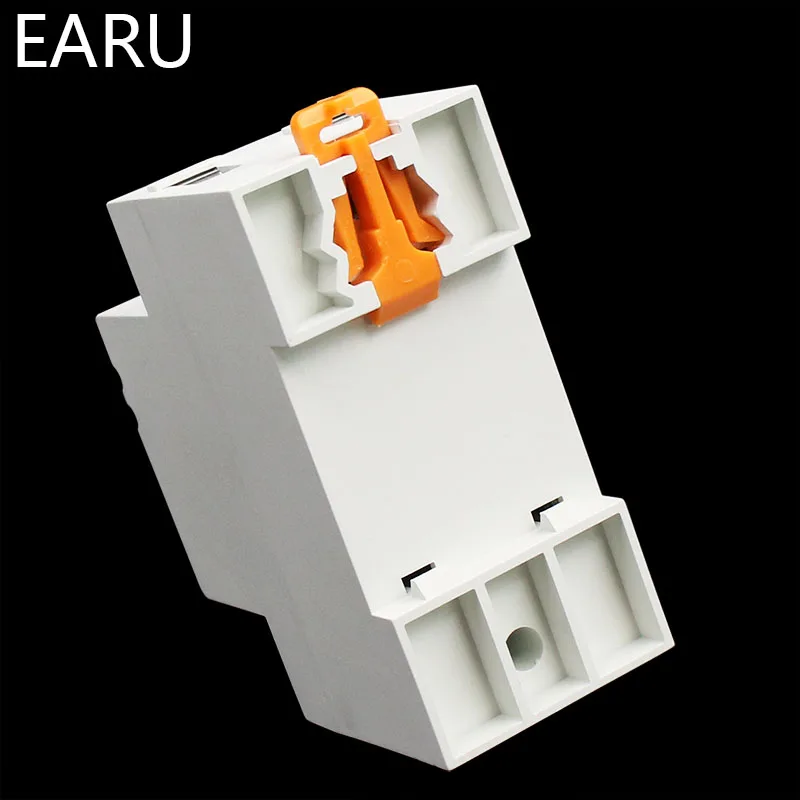

Installing: 35Mm Din Rail.
Main Technical Speacification:
1. Rated Ac Voltage 230V10%And Frequency 50Hz/60Hz
2. Passing Max Current: 63A
3. Max. Loading Power: 15Kva
4. Over-Voltage Action Cut-Off Value: 270Vac+/-5V
5. Normal-Voltage Value: 175-270Vac
6. Under-Voltage Action Cut-Off Value: 170Vac+/-5V
7. Over Voltage And Under
