1 Pcs Microstep Driver For Nema23 Stepper Motor Tb6600
Selamat datang di SUPPLY IN,
SUPPLY IN merupakan jasa penyedia barang dengan kategori Tools dan Industri yang berkualitas langsung dari pabrik serta bisa CUSTOM sesuai dengan kebutuhan Anda.
– Item tersedia langsung dari pabrik
– Buka 24 jam cepat merespon
– Hubungi Kami Untuk Menanyakan varian Barang yang tersedia
– Pengiriman cepat 8-15 hari
Barang Tools & Industri dengan berbagai macam Jenis, Bentuk maupun berbagai variasi (silakan bertanya untuk mendapat kebutuhan Anda)
Note Penting: Kami juga bisa menyediakan segala jenis produk, silakan memilih fitur Online Quotation untuk penawaran menarik dari kami.
Selamat Bertransaksi!
Power Supply : Dc
Model Number : Tb6600 Dm542 Dm556
Motor Type : Dc Motor
Brand Name : Hltnc
Origin : Mainland
Certification : Ce
Used For : Nema23 Stepper Motor
Tb6600 Vdc : 9-40V
Dm542 Vdc : 20-50V
Dm556 Vdc : 20-50V
Tb6600 Current : 4A
Dm542/Dm556 Current : 4.2A
Option 1:
Option 2:
Option 3:
1. Stable Performance
2.High-Speed Response
3.Don’T Lose A Step

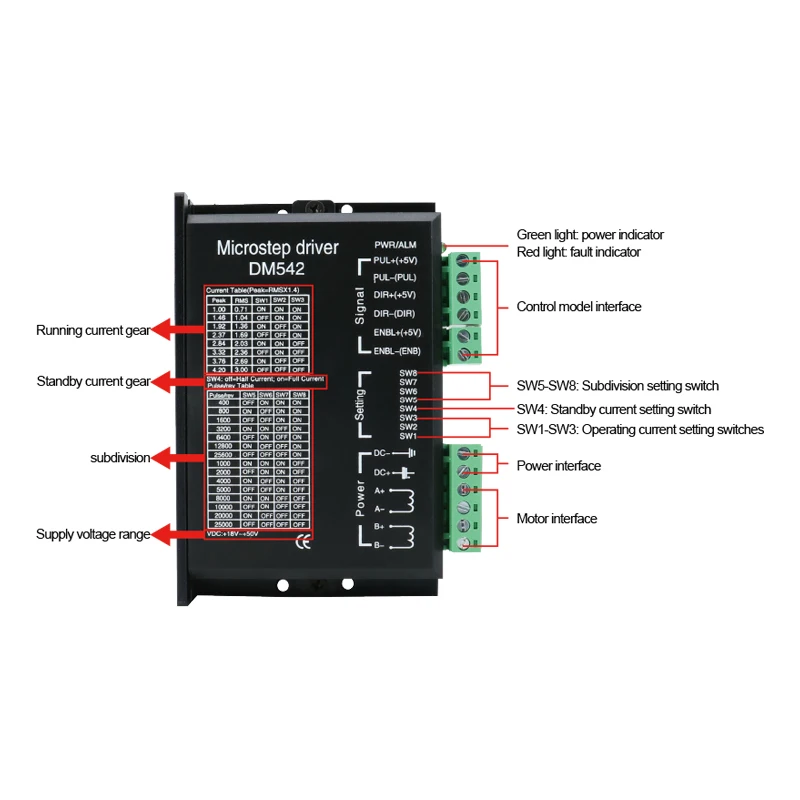

Microstep Driver Dm542
Specifications
Name
Dm542 Stepper Motor Fahrer
Spannung
24-50 Vdc
Strom
1,0-4,2 Ein
Microstep
256
Description
Min
Suggest
Max
Supplyvoltagevdc3A
24
36
50
Outcurrent (Peak Value)A
1
/
4.2
Logic Control Input Current(Ma)
8
10
20
Stepping Impulse
Response Frequency(Khz)
0
/
200
Cooling
Natural Cooling
Use Of The
Environment
Environment
Avodi Dust , Oil ,Corrosive Gases
Humidity
40-90%Rh
Temoerature
0-50
Tremor
5.9M/S*S Max

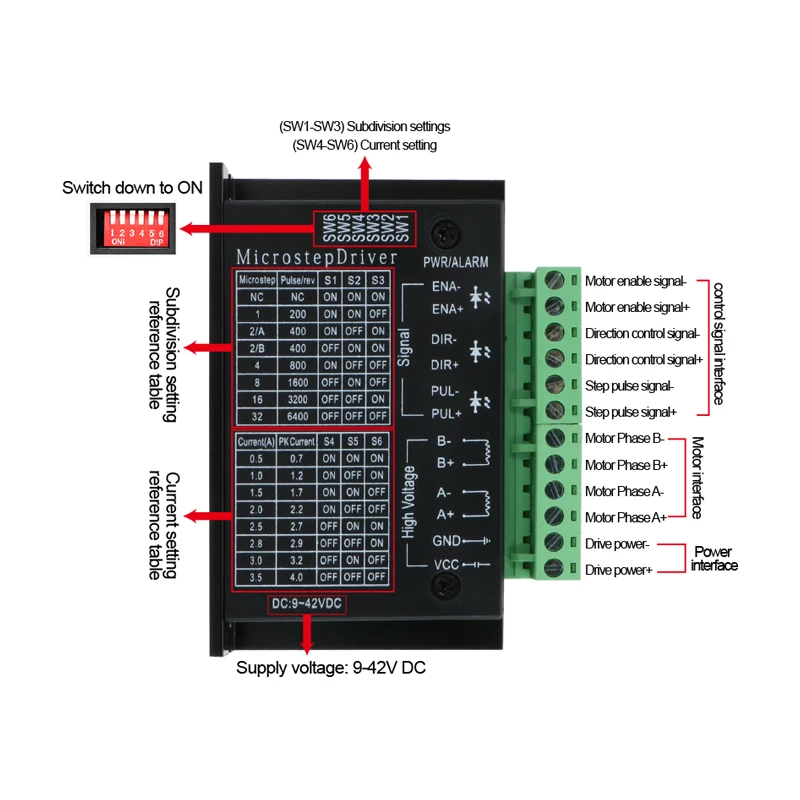

Microstep Driver Tb6600
Specifications
Name
Tb6600Stepper Motor Fahrer
Spannung
9-42 Vdc
Current
0.5-3.5A
Microstep
1-32
Cooling Method
Free Cooling Or Forced Air Cooling
Occasion
Can Not Be Placed Next To Other Heating Equipment, To Avoid Dust, Oil, Corrosive Gas, High Humidity And Strong Earthquake Places, Prohibit Flammable Gas And Conductive Dust.
Humidity
40-90%Rh
Shock
10-55Hz/0.15Mm
Storagetemperature
-20-65
Weight
0.15Kg

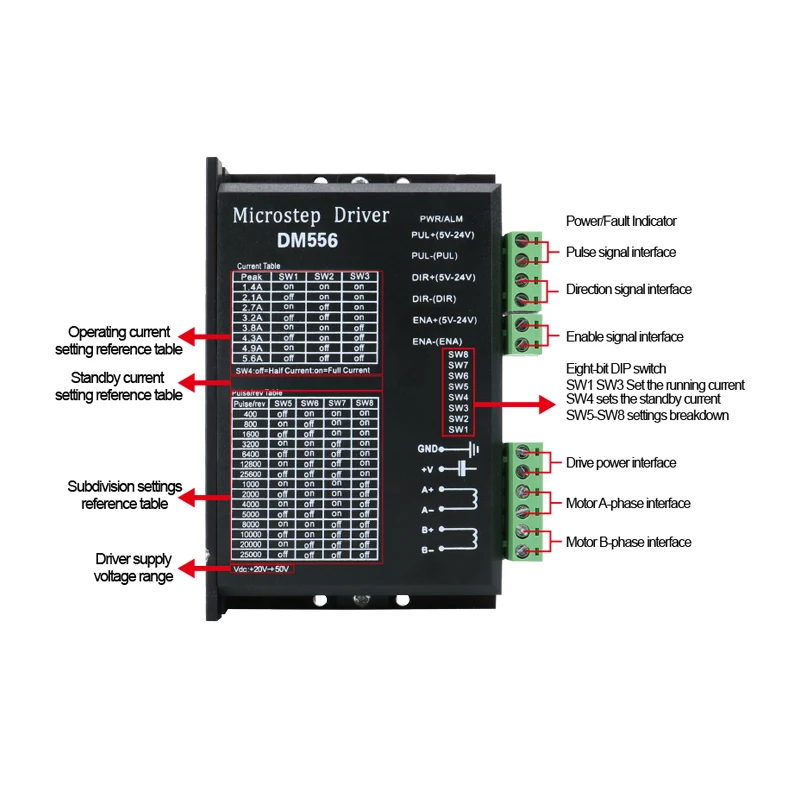

Microstep Driver Dm556
Specifications
Instruction
Min
Typical Value
Max
Unit
Output Current
1.4
1.4
5.6
A
Input Supply Voltage
20
20
50
Vdc
Control Signal
